Machine vice Bison type 6512-100

€255.85 *
€304.46 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 326512050600
  • 84662098
  • 9,9 kg
  • 0
Machine vice Bison type 6512-100 with movable rear jaw - designed for use with milling... more
Product information "Machine vice Bison type 6512-100"

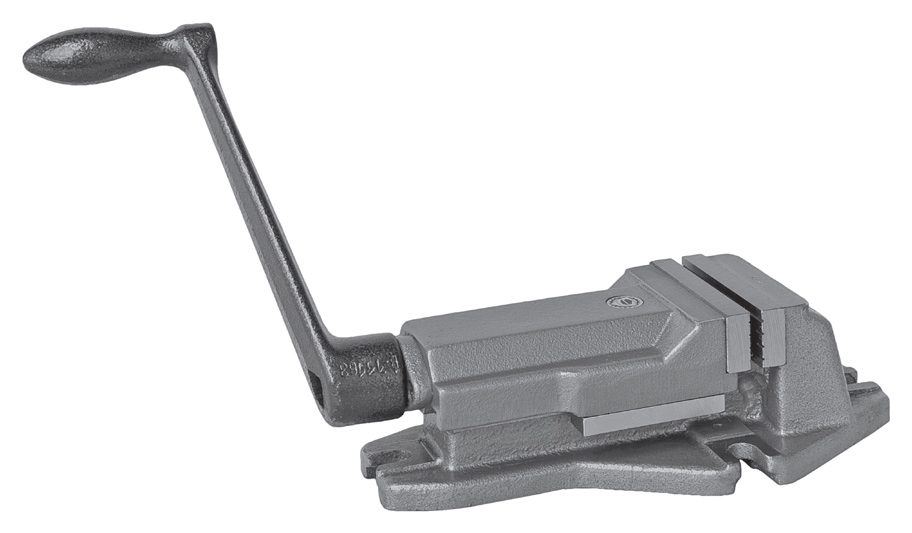

Machine vice Bison type 6512-100
with movable rear jaw

- designed for use with milling machines, drill presses, etc.
- body and movable jaw are high quality castings
- removable grooved jaw inserts are hardened and ground
- lead screw protected against dirt and chips
- incl. handcrank and slot nuts

Related links to "Machine vice Bison type 6512-100"

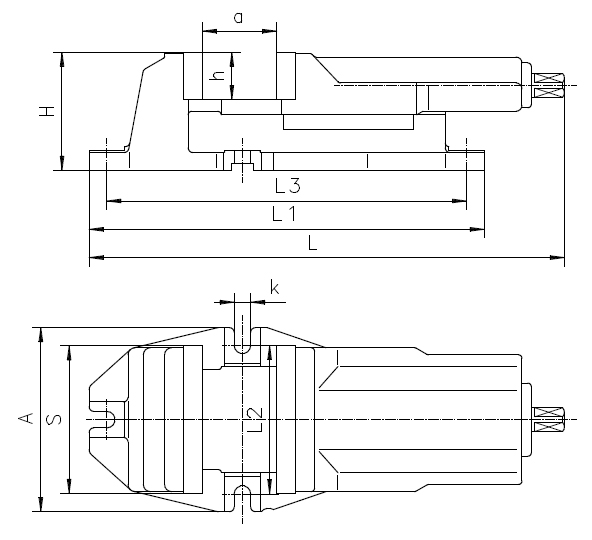

Typ / Type S A H L L1 L2 L3 a h k... more
Typ /
Type
S A H L L1 L2 L3 a h k Max. Spannkraft (daN) /
Max. clamping force (daN)
kg
6512-100 100 156 84 294 290 126 260 80 32 14 2.500 9,9
6512-125 125 156 100 347 335 126 305 95 40 14 3.500 15,9
6512-160 160 193 121 423 405 150 365 125 50 18 4.000 29,0
6512-200 200 256 147 515 500 210 460 160 63 18 5.500 56,0
6512-250 250 316 174 615 610 268 566 200 80 18 6.200 71,0

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
