Two angle swivel machine vice Bison type 6530-160

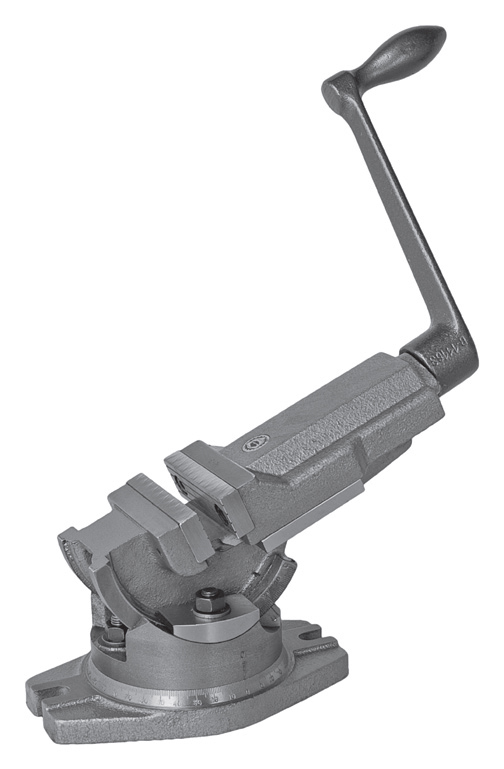

Preview: Two angle swivel machine vice Bison type 6530-160 Preview: Drawing Two angle swivel machine vice Bison type 6530-160
Two angle swivel machine vice Bison type 6530-160

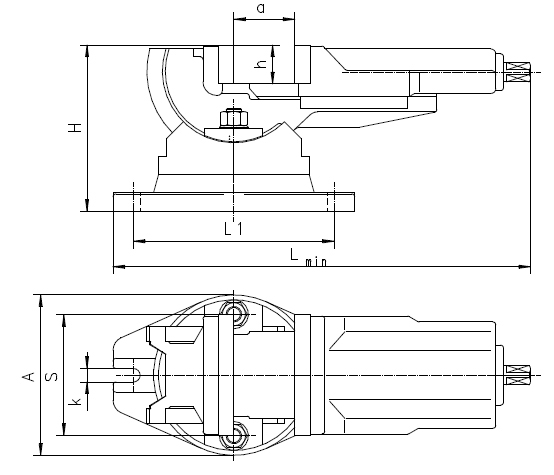

Drawing Two angle swivel machine vice Bison type 6530-160

€657.90 *
€782.90 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 326530070800
  • Customs tariff number: 84662098
  • European article number:
  • Weight: 34,2 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Two angle swivel machine vice Bison 6530-160 - designed for milling, planing and... more
Close menu
Product information "Two angle swivel machine vice Bison type 6530-160"

Two angle swivel machine vice Bison 6530-160

- designed for milling, planing and drilling
  when two angle settings occur
- up to 90° angle of incline from the horizontal position
- 360° swivel base with ground contact edge and graduation
- removable grooved jaw inserts are hardened and ground
- fully covered lead screw protected against dirt and chips
- incl. handcrank and slot nuts

Related links to "Two angle swivel machine vice Bison type 6530-160"
Technical data
Typ / Type S A H L min L1 a h k Max. Spannkraft (daN) / Max. clamping... more
Zurück
Typ /
Type		 S A H L
min		 L1 a h k Max. Spannkraft (daN) /
Max. clamping force (daN)		 kg
6530-100 100 144 145 372 181 80 32 14 2.500 12,5
6530-125 125 168 169 437 208 100 40 14 3.500 20,0
6530-160 160 212 200 450 208 125 50 18 4.500 34,2

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
