Heavy duty table vice Bison type 1240-80L

€229.50 *
€273.11 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 321240140400
  • 82057000
  • 6,8 kg
  • 0
Heavy duty table vice Bison 1240-80L - this high quality, rugged vice with dovetail guides... more
Product information "Heavy duty table vice Bison type 1240-80L"

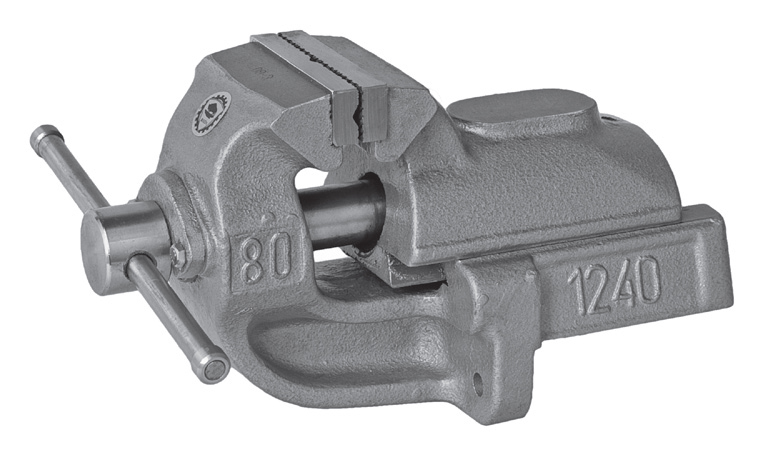

Heavy duty table vice Bison 1240-80L

- this high quality, rugged vice with dovetail guides is
  well-suited to extra heavy work
- steel jaw inserts induction hardened and ground,
  jaw inserts with vertical and horizontal recesses for
  clamping round workpieces
- lead-screw completely covered to keep dirt out
- fixed base and movable back jaw

Type: Table vices
Jaw width: 80 mm
Type: mechanically
Clamping capacity: 100 mm
Make: Bison
Related links to "Heavy duty table vice Bison type 1240-80L"

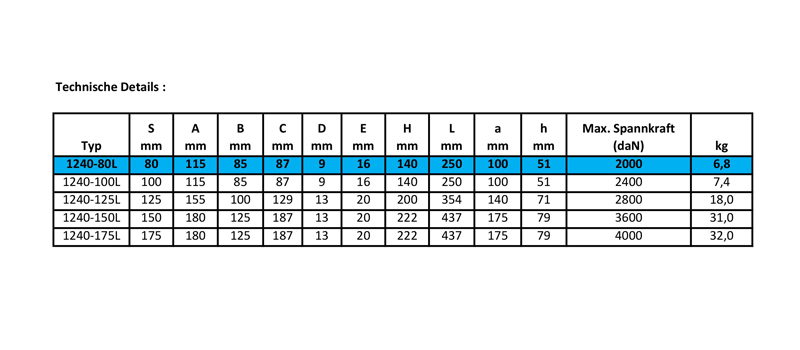

Typ / Type S A B C D E H L a h... more
Typ /
Type
S A B C D E H L a h Max. Spannkraft (daN) /
Max. clamping force (daN)
kg
1240-80L 80 115 85 87 9 16 140 250 100 51 2.000 6,8
1240-100L 100 115 85 87 9 16 140 250 100 51 2.400 7,4
1240-125L 125 155 100 129 13 20 200 354 140 71 2.800 18,0
1240-150L 150 180 125 187 13 20 222 437 175 79 3.600 31,0
1240-175L 175 180 125 187 13 20 222 437 175 79 4.000 32,0
1240-200L 200 214 150 232 15 26 268 585 250 90 4.300 59,0
1240-250L 250 214 150 232 15 26 268 585 250 90 4.500 61,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
