- Order number: 326545140100
- Customs tariff number: 84662098
- European article number:
- Weight: 37,8 kg
- In stock: 0
Shaft holding machine vice Bison 6546-125
- ideal for most drilling and light milling... more
Product information "Shaft holding machine vice Bison type 6546-125"

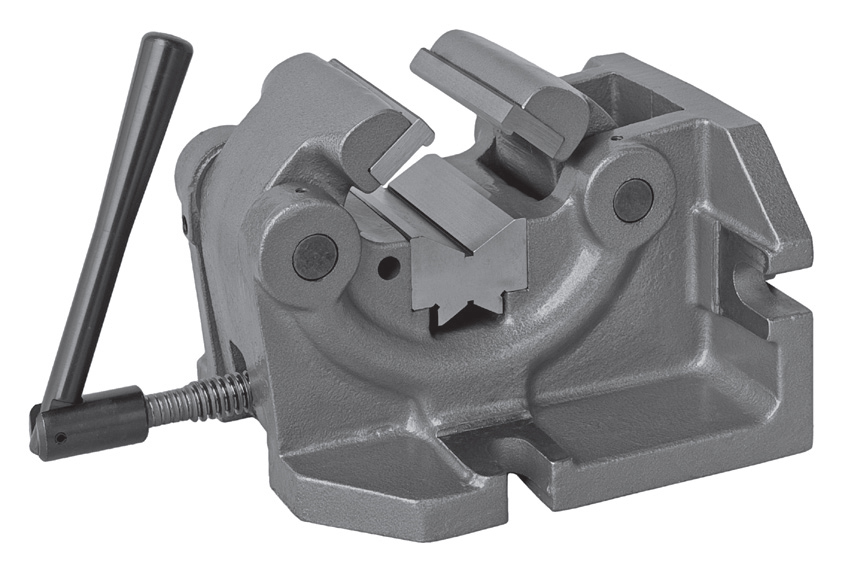

Shaft holding machine vice Bison 6546-125
- ideal for most drilling and light milling operations
- able to be set up in both horizontal and vertical positions
- hardened and ground jaw inserts and V-block
- sturdy, cast iron design
- incl. handcrank and slot nuts
Type: | Shaft holding machine vices |
Jaw width: | 125 mm |
Type: | mechanically |
Make: | Bison |
Related links to "Shaft holding machine vice Bison type 6546-125"
Typ / Type
S
A
H
L
L1
d
k
Max. Spannkraft (daN) / Max.... more

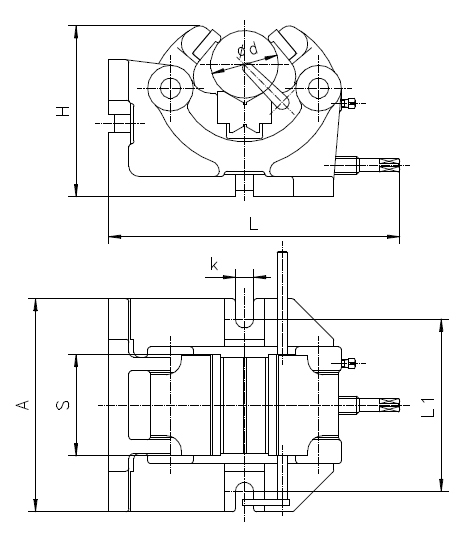

Typ / Type |
S | A | H | L | L1 | d | k | Max. Spannkraft (daN) / Max. clamping force (daN) |
kg |
6546-100 | 100 | 210 | 170 | 287 | 170 | 10 – 63 | 18 | 1.000 | 20,9 |
6546-125 | 125 | 200 | 235 | 389 | 160 | 15 – 100 | 18 | 1.500 | 37,8 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
