Self-centering machine vice Bison type 6531-160

Preview: Self-centering machine vice Bison type 6531-160 Preview: Drawing Self-centering machine vice Bison type 6531-160
Self-centering machine vice Bison type 6531-160
Drawing Self-centering machine vice Bison type 6531-160

€642.60 *
€764.69 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 326531070600
  • Customs tariff number: 84662098
  • European article number:
  • Weight: 33,5 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Self-centering vice Bison 6531-160 - designed for various types of milling and planing ... more
Close menu
Product information "Self-centering machine vice Bison type 6531-160"

Self-centering vice Bison 6531-160

- designed for various types of milling and planing
  of forms, slots and grooves
- 360° swivel base with ground contact edge and graduation
- removable grooved jaw inserts are hardened and ground
- sturdy design of cast iron
- incl. handcrank and slot nuts

Related links to "Self-centering machine vice Bison type 6531-160"

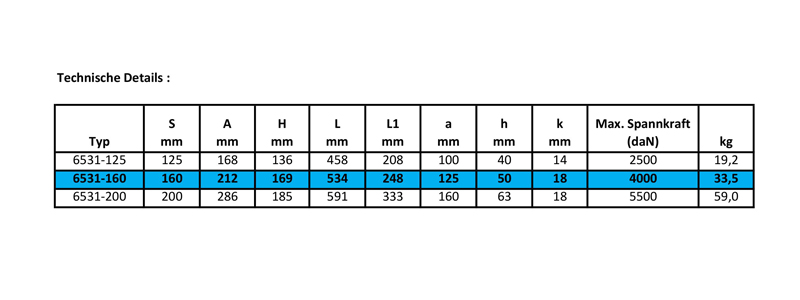

Technical data
Typ / Type S A H L L1 a h k Max. Spannkraft (daN) /... more
Zurück
Typ /
Type		 S A H L L1 a h k Max. Spannkraft (daN) /
Max. clamping force (daN)		 kg
6531-125 125 168 136 458 208 100 40 14 2.500 19,2
6531-160 160 212 169 534 248 125 50 18 4.000 33,5
6531-200 200 286 193 591 333 160 63 18 5.500 59,0

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
