Base Bison type 9450-200

Preview: Base Bison type 9450-200 Preview: Drawing Base Bison type 9450-200

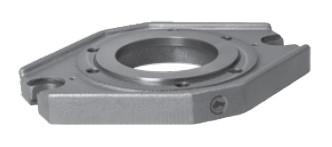

Base Bison type 9450-200

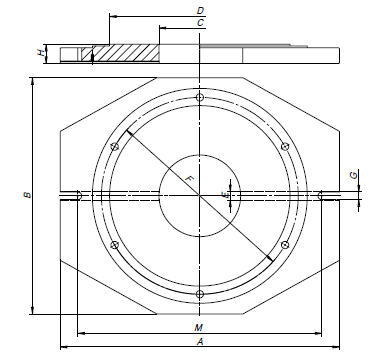

Drawing Base Bison type 9450-200

€357.60 *
€425.54 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 329450050900
  • Customs tariff number: 84663000
  • European article number:
  • Weight: 7,5 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Base Bison type 9450 - for chuck size 200 mm - for DIN 6350 - incl. slot nuts and clamping... more
Close menu
Product information "Base Bison type 9450-200"

Base Bison type 9450

- for chuck size 200 mm
- for DIN 6350
- incl. slot nuts and clamping bolts

Related links to "Base Bison type 9450-200"

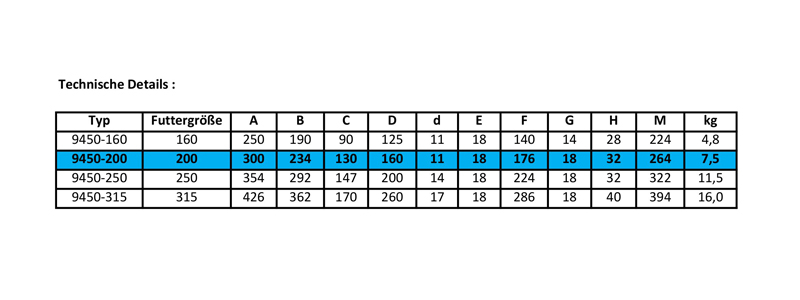

Technical data
Typ / Type Futtergröße / Chuck size A B C D d E F G... more
Zurück
Typ /
Type		 Futtergröße /
Chuck size		 A B C D d E F G H M kg
9450-160 160 250 190 90 125 11 18 140 14 28 224 4,8
9450-200 200 300 234 130 160 11 18 176 18 32 264 7,5
9450-250 250 354 292 147 200 14 18 224 18 32 322 11,5
9450-315 315 426 362 170 260 17 18 286 18 40 394 16,0

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
