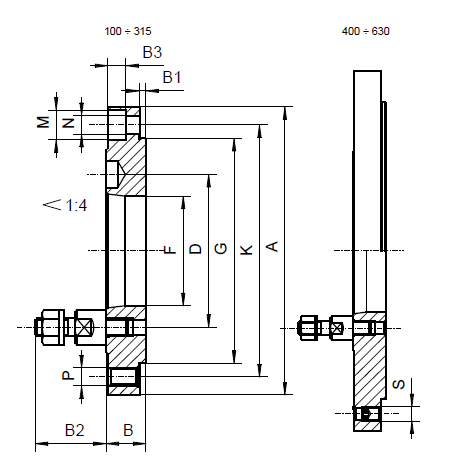

Adapter plate DIN 55027, type 8230-500-15-X
Product number:
358230321000
Customs tariff number
84662091
European Article Number
Weight
35,7 kg
Stock:
0
Related links:
Request Item
Product information "Adapter plate DIN 55027, type 8230-500-15-X"
Adapter plate Bison
- DIN 55027
- fully finished
- type 8230-X Ø 500 mm, taper 15
| DIN: | 55027 |
|---|---|
| Make: | Bison |
| Taper: | 15 |
| Type: | fully machined |
| Ø : | 500 mm |
Technical Data
| W | KK 1:4 / ST 1:4 |
A | B | B1 | B2 | D | F | G (h6) |
K | M | N | P | S | kg |
| 160 | 4 | 160 | 22 | 3,5 | 39 | 85,0 | 60,9 | 125 | 140 | 6x16,5 | 6x10,5 | 6x10 | - | 2,5 |
| 160 | 5 | 160 | 22 | 3,5 | 43 | 104,8 | 79,5 | 125 | 140 | 6x16,5 | 6x10,5 | 6x10 | - | 2,2 |
| 160 | 6 | 160 | 22 | 3,5 | 50 | 133,4 | 103,0 | 125 | 140 | 6x16,5 | 6x10,5 | 6x10 | - | 1,9 |
| 200 | 5 | 200 | 22 | 3,5 | 43 | 104,8 | 79,5 | 160 | 176 | 6x16,5 | 6x10,5 | 6x10 | - | 3,9 |
| 200 | 6 | 200 | 22 | 3,5 | 50 | 133,4 | 103,0 | 160 | 176 | 6x16,5 | 6x10,5 | 6x10 | - | 3,6 |
| 250 | 6 | 250 | 28 | 4,5 | 50 | 133,4 | 103,0 | 200 | 224 | 6x19 | 6x13 | 6x12 | - | 7,6 |
| 250 | 8 | 250 | 28 | 4,5 | 60 | 171,4 | 136,1 | 200 | 224 | 6x19 | 6x13 | 6x12 | - | 6,7 |
| 315 | 6 | 315 | 33 | 4,5 | 50 | 133,4 | 103,0 | 260 | 286 | 6x25 | 6x17 | 6x16 | - | 15,1 |
| 315 | 8 | 315 | 33 | 4,5 | 60 | 171,4 | 136,1 | 260 | 286 | 6x25 | 6x17 | 6x16 | - | 14,0 |
| 315 | 11 | 315 | 33 | 4,5 | 75 | 235,0 | 192,8 | 260 | 286 | 6x25 | 6x17 | 6x16 | - | 12,2 |
| 400 | 8 | 400 | 36 | 4,5 | 60 | 171,4 | 136,1 | 330 | 362 | 6x25 | 6x17 | 6x16 | 3xM16 | 26,9 |
| 400 | 11 | 400 | 36 | 4,5 | 75 | 235,0 | 192,8 | 330 | 362 | 6x25 | 6x17 | 6x16 | 3xM16 | 24,7 |
| 500 | 11 | 500 | 36 | 4,5 | 75 | 235,0 | 192,8 | 420 | 458 | 6x25 | 6x17 | 6x16 | 3xM16 | 42,1 |
| 500 | 15 | 500 | 36 | 4,5 | 90 | 330,2 | 281,4 | 420 | 458 | 6x25 | 6x17 | 6x16 | 3xM16 | 35,7 |
| 630 | 11 | 630 | 42 | 6,0 | 75 | 235,0 | 192,8 | 545 | 586 | 6x25 | 6x17 | 6x16 | 3xM16 | 81,9 |
| W = Futterdurchmesser / Chuck diameter | ||||||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||||||
