€15,496.48 incl. VAT
Prices plus VAT plus shipping costs
Delivery time upon request
- Order number: 353865100500
- Customs tariff number: 84662091
- European article number:
- Weight: 316 kg
- In stock: 0

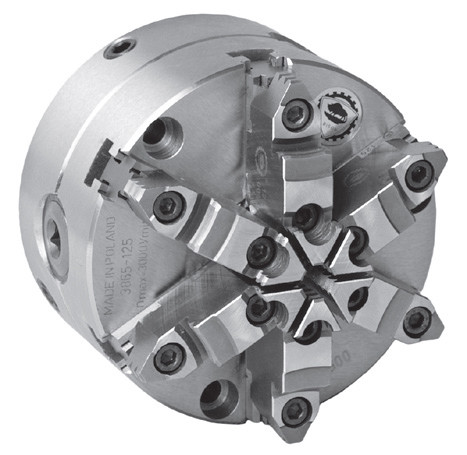

6-jaw scroll chuck Bison - type 3865 Ø 630 mm - hardened and ground working surfaces -... more
Product information "6-jaw scroll chuck Bison type 3865-630"
6-jaw scroll chuck Bison
- type 3865 Ø 630 mm
- hardened and ground working surfaces
- balanced scroll plate
- repeatability: 0,015 mm
- fine adjustment radially set screws provide nearly 0 run-out
- the clamped workpiece is adjusted to the required
concenctricity by means of 8
- mounted on the machine tool spindle from the back
of the chuck by using an adapter plate
- material of body: steel
- 2-piece jaws
- incl. 1 set of hard top jaws, 1 set of hard master jaws
and 1 wrench
