Soft solid jaws for 4-jaw scroll chucks Ø 125 mm

Preview: Soft solid jaws for 4-jaw scroll chucks Ø 125 mm Preview: Drawing Soft solid jaws for 4-jaw scroll chucks Ø 125 mm
Soft solid jaws for 4-jaw scroll chucks Ø 125 mm

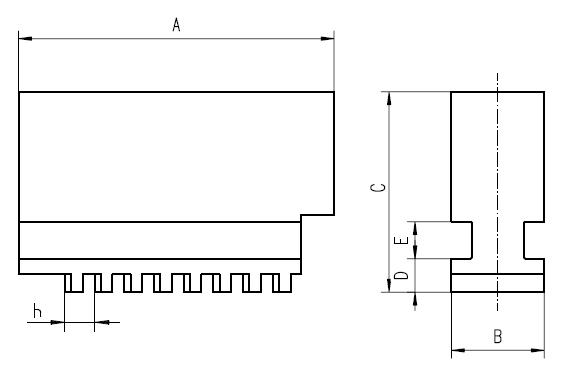

Drawing Soft solid jaws for 4-jaw scroll chucks Ø 125 mm

€120.75 *
€143.69 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 398539820200
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 1,2 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Soft solid jaws for Bison 4-jaw scroll chucks Ø 125 mm - material: steel - 4 pieces/set more
Close menu
Product information "Soft solid jaws for 4-jaw scroll chucks Ø 125 mm"

Soft solid jaws
for Bison 4-jaw scroll chucks Ø 125 mm

- material: steel
- 4 pieces/set

Related links to "Soft solid jaws for 4-jaw scroll chucks Ø 125 mm"
Technical data
Futtergröße / Chuck size A B C D E h kg pro Stück /... more
Zurück
Futtergröße /
Chuck size		 A B C D E h kg pro Stück /
kg per piece
125 51 20 40 8,0 8 7,0 0,3
160 70 20 53 8,0 8 8,0 0,5
200 85 25 54 9,0 10 8,0 0,8
250 105 28 63 11,0 12 9,0 1,4
315 125 32 73 12,7 12 10,0 1,9
400 145 36 92 15,0 14 12,0 2,5
500 180 40 100 16,0 14 14,2 5,0
630 225 50 110 16,0 14 14,2 8,4

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
