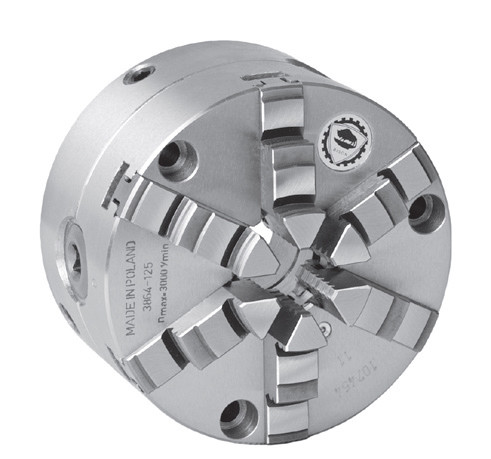

6-jaw scroll chuck Bison type 3864-630

€14,337.00 *
€17,061.03 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353864100700
  • 84662091
  • 332 kg
  • 0
6-jaw scroll chuck Bison - type 3864 Ø 630 mm - hardened and ground working surfaces -... more
Product information "6-jaw scroll chuck Bison type 3864-630"

6-jaw scroll chuck Bison

- type 3864 Ø 630 mm
- hardened and ground working surfaces
- balanced scroll plate
- repeatability: 0,015 mm
- fine adjustment radially set screws provide nearly 0 run-out
- the clamped workpiece is adjusted to the required
  concenctricity by means of 8
- mounted on the machine tool spindle from the back
  of the chuck by using an adapter plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside solid jaws, 1 set of hard inside solid jaws
  and 1 wrench
