6-jaw scroll chuck Bison type 3864-500

€9,883.50 *
€11,761.37 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353864090200
  • 84662091
  • 180 kg
  • 0
6-jaw scroll chuck Bison - type 3864 Ø 500 mm - hardened and ground working surfaces -... more
Product information "6-jaw scroll chuck Bison type 3864-500"

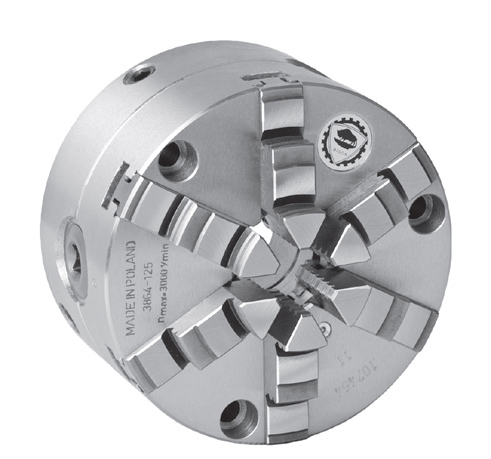

6-jaw scroll chuck Bison

- type 3864 Ø 500 mm
- hardened and ground working surfaces
- balanced scroll plate
- repeatability: 0,015 mm
- fine adjustment radially set screws provide nearly 0 run-out
- the clamped workpiece is adjusted to the required
  concenctricity by means of 8
- mounted on the machine tool spindle from the back
  of the chuck by using an adapter plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
  and 1 wrench

Related links to "6-jaw scroll chuck Bison type 3864-500"
A B C D E F G J L kg 125 71,5 15 55,000 35 108,0 3xM8... more

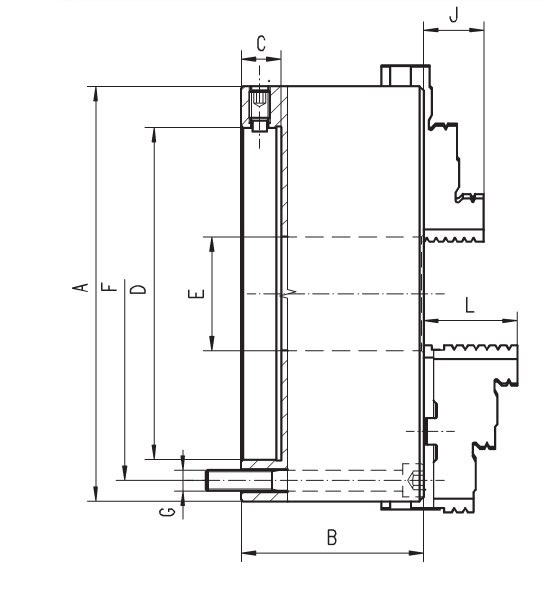

A B C D E F G J L kg
125 71,5 15 55,000 35 108,0 3xM8 20 40 6,2
160 68,6 18 86,000 42 140,0 3xM10 32 43 10,5
200 78,0 20 110,000 60 176,0 3xM10 29 45 17,5
250 89,0 20 145,000 76 224,0 3xM12 34 53 33,0
315 96,2 20 180,000 103 286,0 3xM16 41 56 56,0
400 123,0 22 299,237 136 171,5 6xM16 55 67 99,0
500 144,0 30 407,160 190 235,0 6xM20 60 79 180,0
630 150,0 30 407,160 252 330,2 6xM20 70 87 326,0

Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel /
Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
