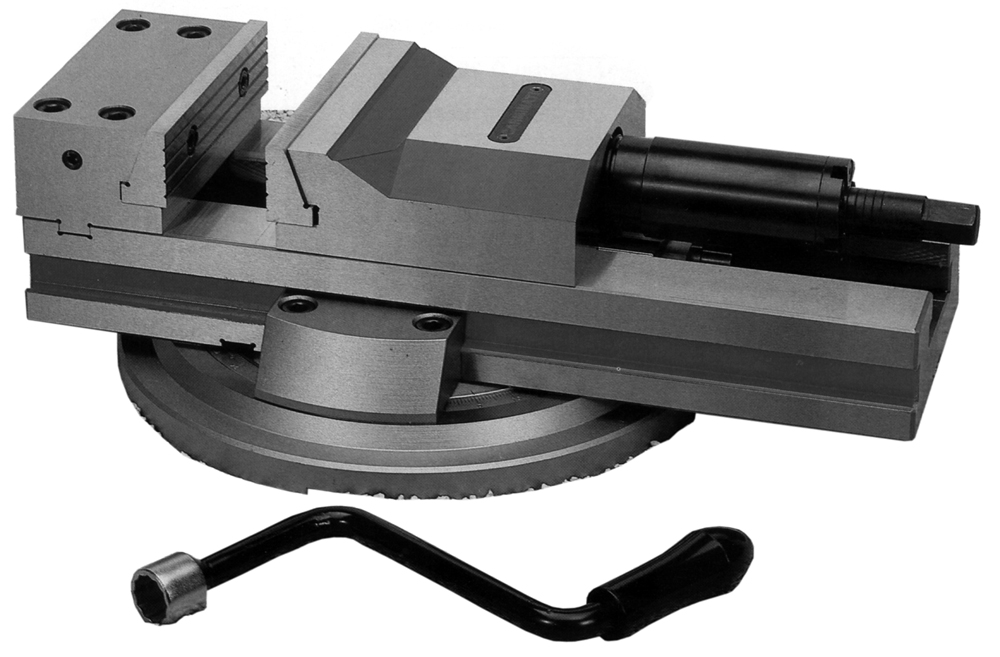

Precision vice with pull-down jaws type ISP.81-150

Preview: Precision vice with pull-down jaws type ISP.81-150 Preview: Drawing Precision vice with pull-down jaws type ISP.81-150
Precision vice with pull-down jaws type ISP.81-150

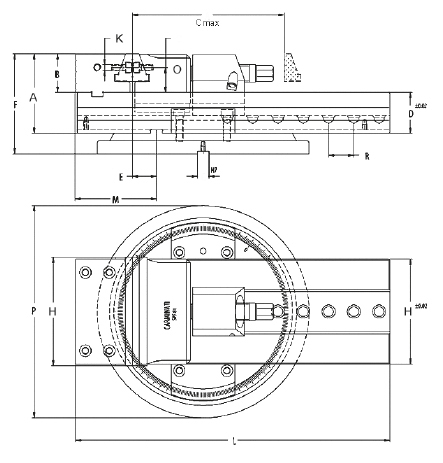

Drawing Precision vice with pull-down jaws type ISP.81-150

Price on request

Prices plus VAT plus shipping costs

Delivery time upon request
Request price now
  • Order number: 14-ISP81-150
  • Customs tariff number: 8466 2098
  • European article number: 4049794009765
  • Weight: 51 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Precision vice with pull-down jaws type ISP.81-150, mechanical-hydraulical - modular system,... more
Close menu
Product information "Precision vice with pull-down jaws type ISP.81-150"

Precision vice with pull-down jaws type ISP.81-150,
mechanical-hydraulical - modular system, Carminati Morse

Precision vice, designed identical to basic model SP.81,
however with integrated hydraulic/mechanic spindle.

- pull-down jaws which clamp the work piece on the
  plate under any conditions
- jaw return control
- wide opening and quick positioning for special machining
- material: hardened alloy steel, precision ground
- clamping force: 4 t
- supplied without swivel plate

Type: Precision vices
Jaw width: 150 mm
Type: mechanically-hydraulic
Clamping capacity: 210 mm
Make: Carminati Morse
Related links to "Precision vice with pull-down jaws type ISP.81-150"
Technical data
Typ / Type Cmax mm B mm A mm D mm E mm F mm g mm H mm L mm M mm K mm... more
Zurück
Typ /
Type		 Cmax
mm		 B
mm		 A
mm		 D
mm		 E
mm		 F
mm		 g
mm		 H
mm		 L
mm		 M
mm		 K
mm		 O
mm		 P
mm		 W
mm		 R
mm		 kg
125 159 46 89 43 11,5 116 14 120 352 81 M6 30 238 125 27 29
150 210 53 110 57 33,5 138 16 145 435 112 M8 34 293 150 35 51
200 320 67 134 67 44 168 16 195 596 142 M8 43,5 343 200 40 99

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
