3-jaw scroll chuck Bison type 3234-250-8

€957.00 *
€1,138.83 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353234340600
  • 84662091
  • 32 kg
  • 0
3-jaw scroll chuck Bison - type C mounting (BAYONET) DIN 5527  - type 3234 Ø 250... more
Product information "3-jaw scroll chuck Bison type 3234-250-8"

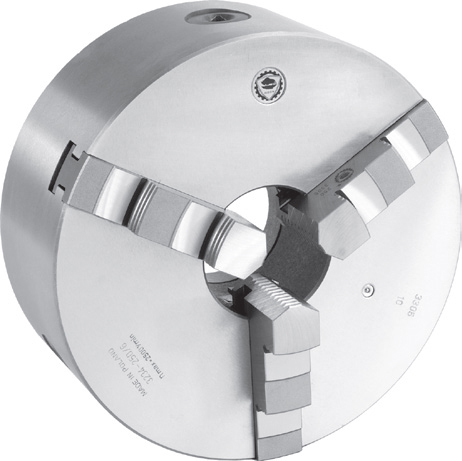

3-jaw scroll chuck Bison

- type C mounting (BAYONET) DIN 5527
- type 3234 Ø 250 mm, taper 8
- ground working surfaces
- material of body: cast iron
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
  and 1 wrench

Related links to "3-jaw scroll chuck Bison type 3234-250-8"

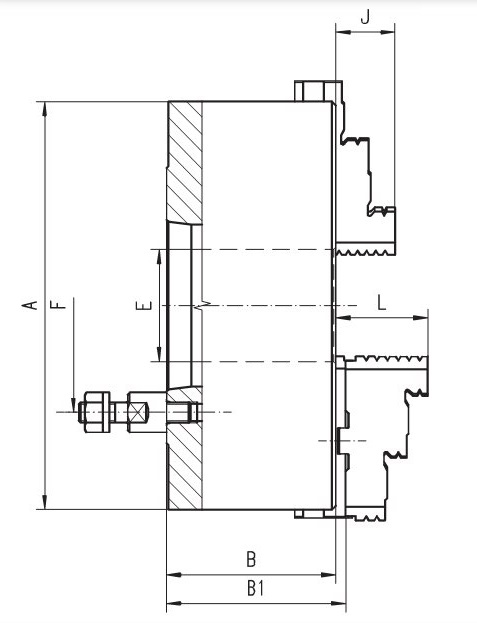

A KK 1:4 / ST 1:4 B B1 E F Stehbolzen / Stud bolts J L kg 125 3... more
A KK 1:4 /
ST 1:4
B B1 E F Stehbolzen /
Stud bolts
J L kg
125 3 70,0 74,8 32 75,0 3 20 40 5
125 4 70,0 74,8 32 85,0 3 20 40 5
160 4 81,5 86,3 42 85,0 3 32 43 9
160 5 81,5 86,3 42 104,8 4 32 43 9
200 5 91,0 95,8 55 104,8 4 29 45 19
200 6 103,5 107,3 55 133,4 4 34 53 32
250 6 103,5 107,3 76 133,4 4 34 53 32
250 8 103,5 107,3 76 171,4 4 34 53 32
315 6 117,7 122,8 103 133,4 4 43 57 51
315 8 117,7 122,8 103 171,4 4 43 57 51
315 11 140,0 145,0 103 235,0 6 43 57 51
400 8 128,5 137,3 136 171,4 4 55 67 101
400 11 128,5 137,3 136 235,0 6 55 67 101
500 8 146,0 156,8 136 171,4 4 60 79 150
500 11 146,0 156,8 190 235,0 6 60 79 150
630 11 165,0 176,3 190 235,0 6 70 87 274
630 15 165,0 176,3 252 330,2 6 70 87 274

Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel /
Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
