Precision machine vice type CMC 300 / 400

Precision machine vice type CMC 300 / 400

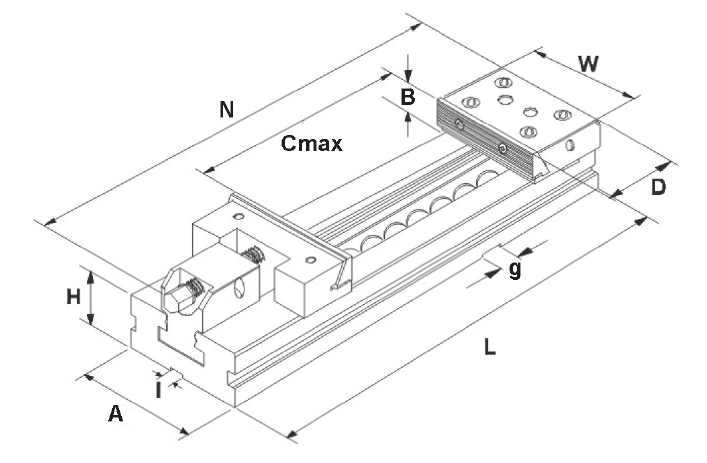

Drawing Precision machine vice type CMC 300 / 400

€2,014.99 *

€2,397.84 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

Order number: ZE-CMC-300/400
Customs tariff number: 8466 2098
European article number: 4049794050378
Weight: 128 kg
In stock: 0

Precision machine vice CMC 300 / 400 - hardened slideways - with pull-down... more

Close menu

Product information "Precision machine vice type CMC 300 / 400"

Precision machine vice CMC 300 / 400

- hardened slideways
- with pull-down mechanism
- modular system
- parallelism < 0,005 / 100 mm
- perpendicularity < 0,02 / 50 mm
- repeatability < 0,02 mm
- fixed jaw rotatable by 180°, reverse with step

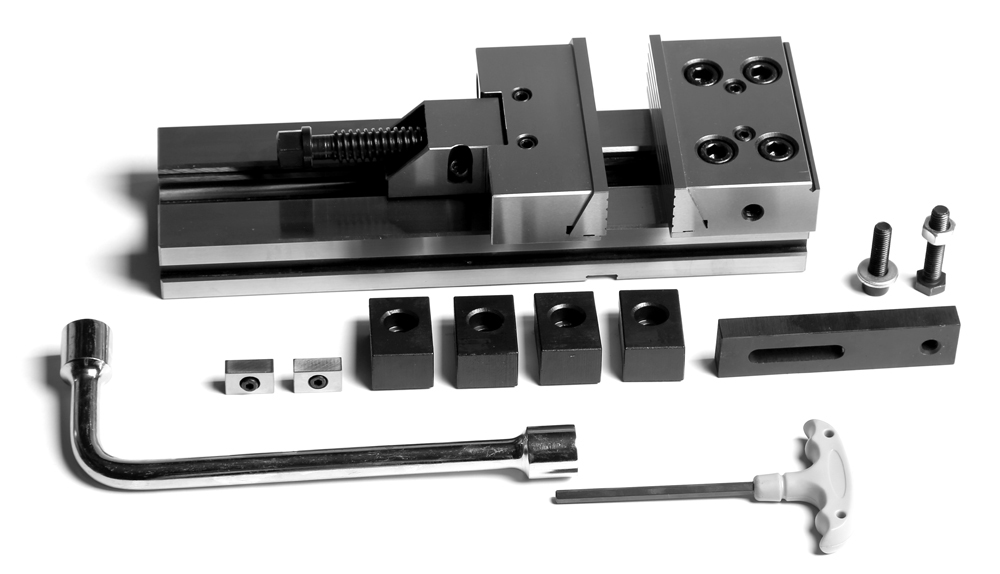

- incl. brackets, T-nuts, wrench, crank and work piece

Related links to "Precision machine vice type CMC 300 / 400"

W mm Cmax mm L mm N mm A mm D mm H mm g mm B mm Max. Anz.moment / Max. torque Nm... more

Zurück

W mm	Cmax mm	L mm	N mm	A mm	D mm	H mm	g mm	B mm	Max. Anz.moment / Max. torque Nm	Max. Spannkraft / Clamping force daN	kg
100	100	270	320	75	77,9	35	16	30	30	3000	7
125	150	345	410	95	77,9	40	16	40	40	3000	13
150	200	420	500	125	89,4	50	16	50	60	5000	26
150	300	520	600	125	89,4	50	16	50	60	5000	29
175	200	455	530	145	96,8	58	16	60	60	6000	37
175	300	555	630	145	96,8	58	16	60	60	6000	42
175	400	655	730	145	96,8	58	16	60	60	6000	47
200	200	495	580	170	113	70	16	65	80	10000	64
200	300	595	680	170	113	70	16	65	80	10000	69
200	400	695	780	170	113	70	16	65	80	10000	74
200	500	795	880	170	113	70	16	65	80	10000	84
300	300	635	730	195	120	78	16	80	80	10000	105
300	400	735	830	195	120	78	16	80	80	10000	115

Inkl. Spannpratzen, Passsteine, Schlüssel, Handkurbel und Werkstückanschlag / Incl. brackets, T-nuts, wrench, crank and work piece stop

Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved
