Precision machine vice type CMC 200 / 400

€1,118.88 *
€1,331.47 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • ZE-CMC-200/400
  • 8466 2098
  • 4049794050354
  • 74 kg
  • 0
Precision machine vice CMC 200 / 400 - hardened slideways - with pull-down mechanism -... more
Product information "Precision machine vice type CMC 200 / 400"

Precision machine vice CMC 200 / 400

- hardened slideways
- with pull-down mechanism
- modular system
- parallelism < 0,005 / 100 mm
- perpendicularity < 0,02 / 50 mm
- repeatability < 0,02 mm
- fixed jaw rotatable by 180°, reverse with step

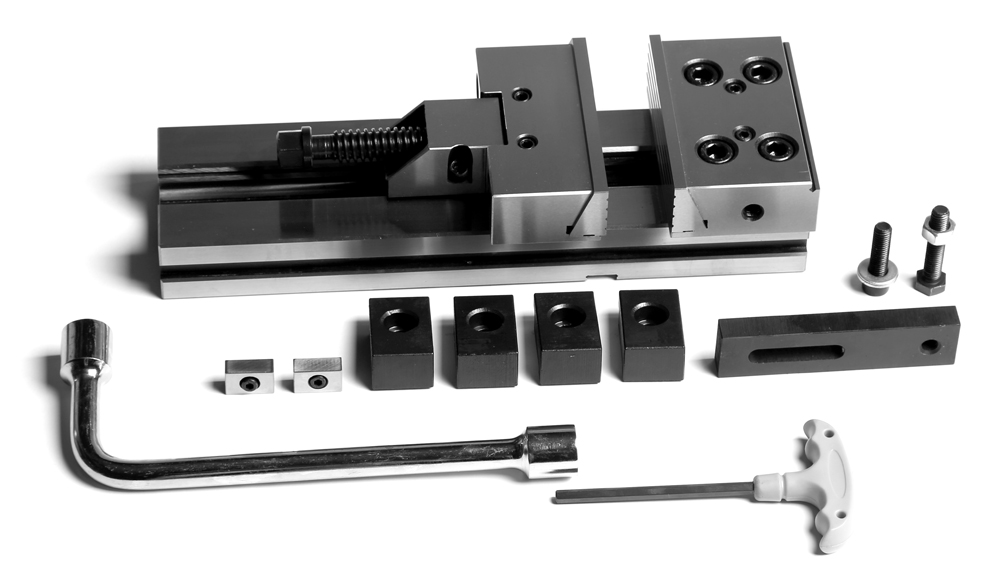

- incl. brackets, T-nuts, wrench, crank and work piece

Related links to "Precision machine vice type CMC 200 / 400"

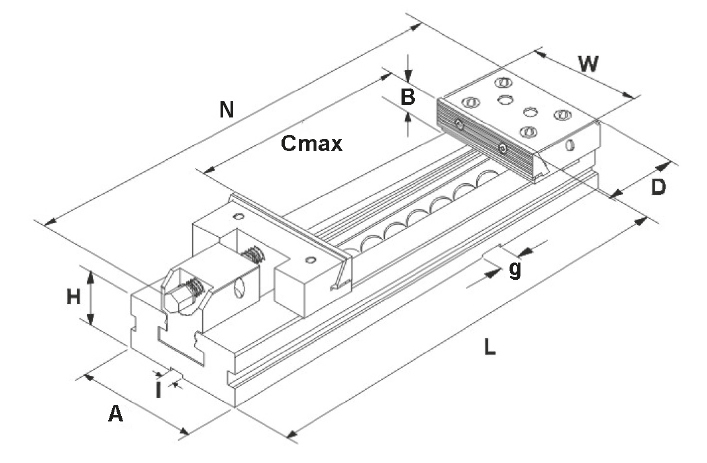

W mm Cmax mm L mm N mm A mm D mm H mm g mm B mm Max. Anz.moment / Max.... more
W
mm
Cmax
mm
L
mm
N
mm
A
mm
D
mm
H
mm
g
mm
B
mm
Max. Anz.moment /
Max. torque Nm
Max. Spannkraft /
Clamping force daN
kg
100 100 270 320 75 77,9 35 16 30 30 3000 7
125 150 345 410 95 77,9 40 16 40 40 3000 13
150 200 420 500 125 89,4 50 16 50 60 5000 26
150 300 520 600 125 89,4 50 16 50 60 5000 29
175 200 455 530 145 96,8 58 16 60 60 6000 37
175 300 555 630 145 96,8 58 16 60 60 6000 42
175 400 655 730 145 96,8 58 16 60 60 6000 47
200 200 495 580 170 113 70 16 65 80 10000 64
200 300 595 680 170 113 70 16 65 80 10000 69
200 400 695 780 170 113 70 16 65 80 10000 74
200 500 795 880 170 113 70 16 65 80 10000 84
300 300 635 730 195 120 78 16 80 80 10000 105
300 400 735 830 195 120 78 16 80 80 10000 115

Inkl. Spannpratzen, Passsteine, Schlüssel, Handkurbel und Werkstückanschlag /
Incl. brackets, T-nuts, wrench, crank and work piece stop

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
