Multiflex vice type MFS 75/700

Preview: Drawing 2 Multiflex vice type MFS 75/700

Preview: Drawing 3 Multiflex vice type MFS 75/700

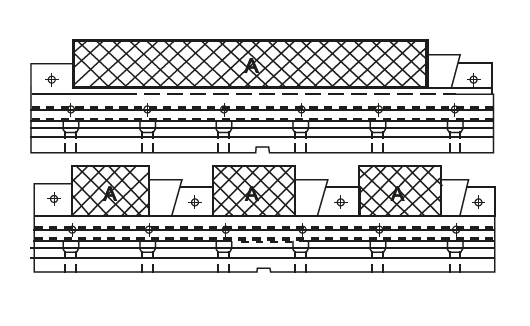

Drawing 1 Multiflex vice type MFS 75/700

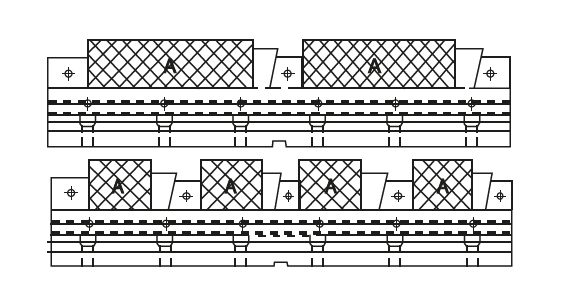

Drawing 2 Multiflex vice type MFS 75/700

Drawing 3 Multiflex vice type MFS 75/700

€1,438.92 *

€1,712.31 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: ZE-MFS-75/700
Customs tariff number: 8466 2098
European article number: 4049794051009
Weight: 36,9 kg
In stock: 6

Multiflex vice MFS 75/700 - for clamping of multiple work pieces - each clamping element... more

Close menu

Product information "Multiflex vice type MFS 75/700"

Multiflex vice MFS 75/700

- for clamping of multiple work pieces
- each clamping element individually adjustable
- optimum exploitation of machines work-space
- for horizontal applications
- with scale for easy of handling
- scope of delivery: 1 clamping bar, 1 fixed jaw (plain)
and 4 clamping jaws (plain)
- incl. 4 brackets, t-nuts, srews, 2 key-nuts,
4 piece stops and wrench

Related links to "Multiflex vice type MFS 75/700"

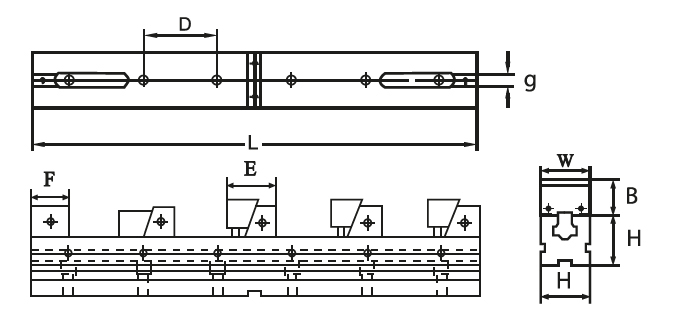

H mm L mm W mm D mm F mm E mm B mm g mm 1xA 2xA 3xA 4Xa Max.... more

Zurück

H mm	L mm	W mm	D mm	F mm	E mm	B mm	g mm	1xA	2xA	3xA	4Xa	Max. Spannkraft / Clamping force daN
75	400	74	100	50	70 - 75	40	16	275	100	41	12	1500
	500							375	150	75	37
	600							475	200	108	62
	700							575	250	141	87
	800							675	300	174	112

Inkl. 4 Spannpratzen mit Nutensteinen und Schrauben, 2 Passsteine, 4 Werkstückanschläge, Spannschlüssel Incl. 4 brackets, t-nuts, screws, 2 key-nuts, 4 work piece stops and wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved
