Multiflex vice type MFS 50/500

Preview: Multiflex vice type MFS 50/500 Preview: Drawing 1 Multiflex vice type MFS 50/500 Preview: Drawing 2 Multiflex vice type MFS 50/500 Preview: Drawing 3 Multiflex vice type MFS 50/500

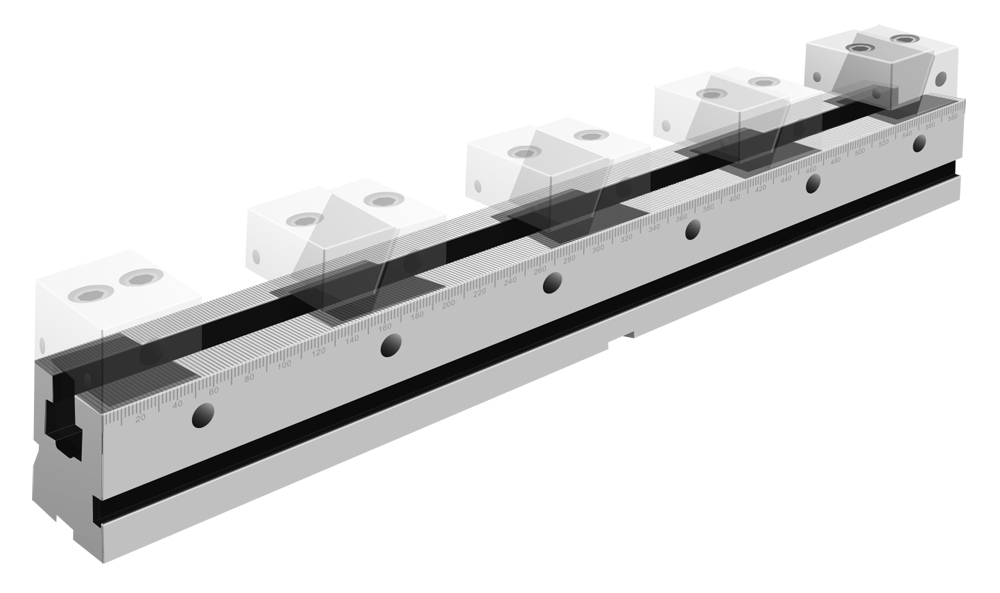

Multiflex vice type MFS 50/500

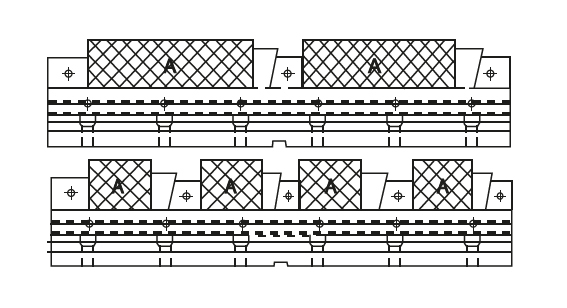

Drawing 1 Multiflex vice type MFS 50/500

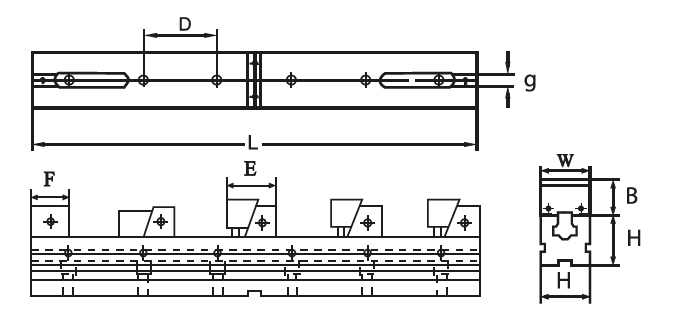

Drawing 2 Multiflex vice type MFS 50/500
Drawing 3 Multiflex vice type MFS 50/500

€1,159.49 *
€1,379.79 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-MFS-50/500
  • Customs tariff number: 8466 2098
  • European article number: 4049794050941
  • Weight: 14 kg
  • In stock: 3
Description Technical data Evaluations 0
Description
Multiflex vice MFS 50/500 - for clamping of multiple work pieces - each clamping element... more
Close menu
Product information "Multiflex vice type MFS 50/500"

Multiflex vice MFS 50/500

- for clamping of multiple work pieces
- each clamping element individually adjustable
- optimum exploitation of machines work-space
- for horizontal applications
- with scale for easy of handling
- scope of delivery: 1 clamping bar, 1 fixed jaw (plain)
  and 3 clamping jaws (plain)
- incl. 4 brackets, t-nuts, screws, 2 key-nuts,
  4 piece stops and wrench

Related links to "Multiflex vice type MFS 50/500"
Technical data
H mm L mm W mm D mm F mm E mm B mm g mm 1xA 2xA 3xA 4Xa Max.... more
Zurück
H
mm		 L
mm		 W
mm		 D
mm		 F
mm		 E
mm		 B
mm		 g
mm		 1xA 2xA 3xA 4Xa Max. Spannkraft /
Clamping force daN
50 300 49 100 38 55 - 58 25 16 208 75 30 8 1000
400 308 125 64 33
500 408 175 96 58
600 508 225 129 83
700 608 275 11 108

Inkl. 4 Spannpratzen mit Nutensteinen und Schrauben, 2 Passsteine, 4 Werkstückanschläge, Spannschlüssel
Incl. 4 brackets, t-nuts, screws, 2 key-nuts, 4 work piece stops and wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
