3-jaw scroll chuck Bisontype 3544-400-8

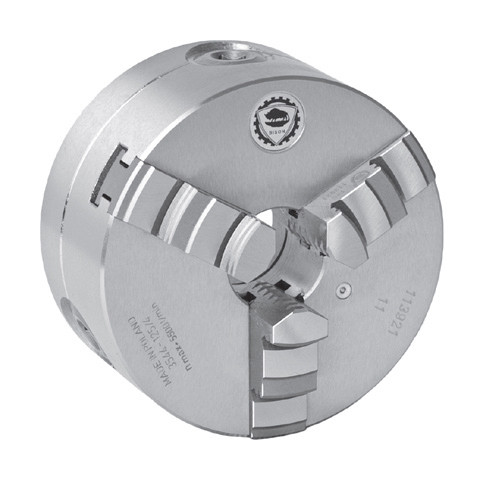

Preview: Dreibacken-Drehfutter Typ 3544-400-8 Preview: Zeichnung Dreibacken-Drehfutter Typ 3544-400-8
Dreibacken-Drehfutter Typ 3544-400-8

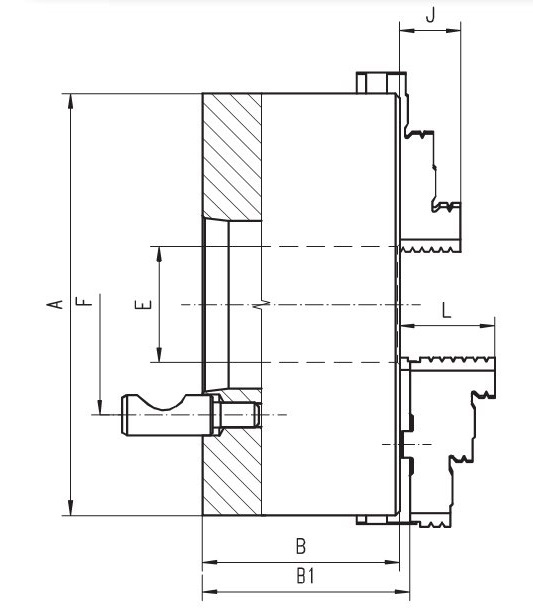

Zeichnung Dreibacken-Drehfutter Typ 3544-400-8

€3,464.25 *
€4,122.46 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 353544740600
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 109 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
3-jaw scroll chuck Bison - type D mounting (CAMLOCK) DIN 55029  - type 3544  Ø... more
Close menu
Product information "3-jaw scroll chuck Bisontype 3544-400-8"

3-jaw scroll chuck Bison

- type D mounting (CAMLOCK) DIN 55029
- type 3544 Ø 400 mm, taper 8
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside solid jaws, 1 set of hard inside solid jaws
  and 1 wrench

Related links to "3-jaw scroll chuck Bisontype 3544-400-8"

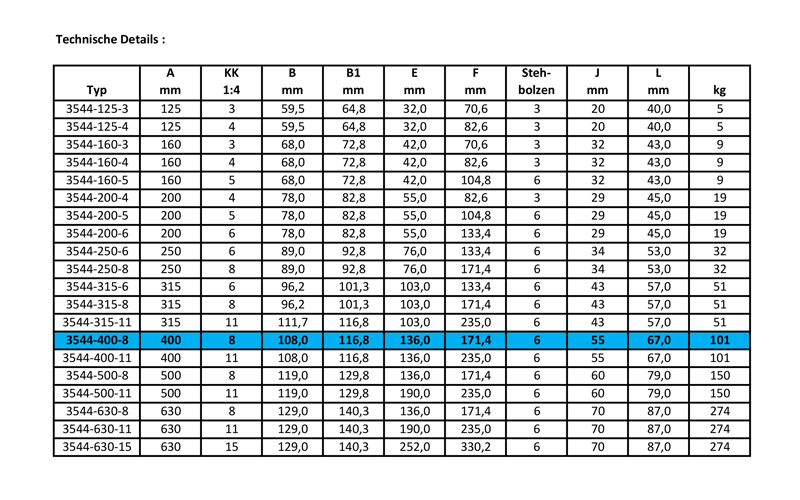

Technical data
more
Zurück

353544740600-3544-400-8
