4-jaw combination chuck (Wescott) type 4605-500

Preview: Vierbacken-Drehfutter Wescott Typ 4605-500 Preview: Zeichnung Vierbacken-Drehfutter Wescott Typ 4605-500

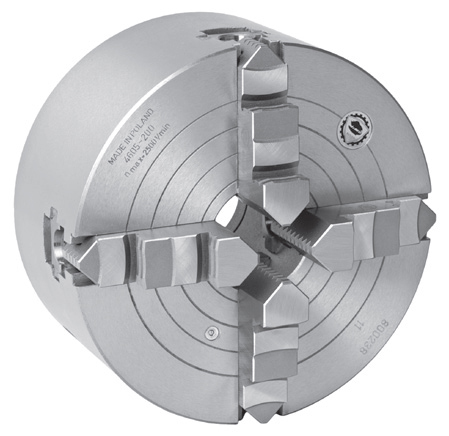

Vierbacken-Drehfutter Wescott Typ 4605-500

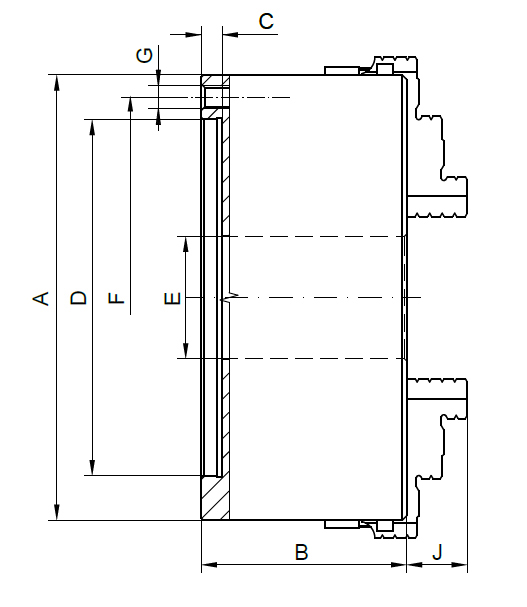

Zeichnung Vierbacken-Drehfutter Wescott Typ 4605-500

€6,900.75 *
€8,211.89 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 354605060400
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 165 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
4-jaw combination chuck (Wescott) Bison - plain back mounting DIN 6350  - type... more
Close menu
Product information "4-jaw combination chuck (Wescott) type 4605-500"

4-jaw combination chuck (Wescott) Bison

- plain back mounting DIN 6350
- type 4605 Ø 500 mm
- individually adjustable jaws
- self-centering jaw clamping
- material of body: cast iron
- solid jaws
- incl. 1 set of solid reversible jaws and 1 wrench

Related links to "4-jaw combination chuck (Wescott) type 4605-500"

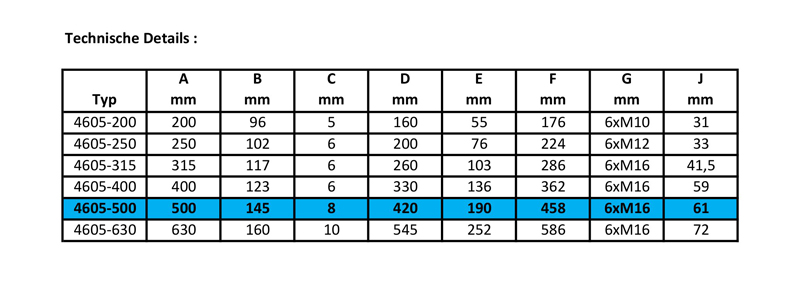

Technical data
