Adapter plate DIN 55029, type 8240-315-11-X

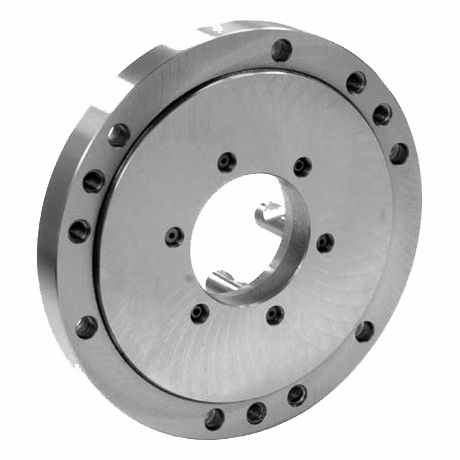

Preview: Adapter plate DIN 55029, type 8240-315-11-X Preview: Drawing Adapter plate DIN 55029, type 8240-315-11-X
Adapter plate DIN 55029, type 8240-315-11-X

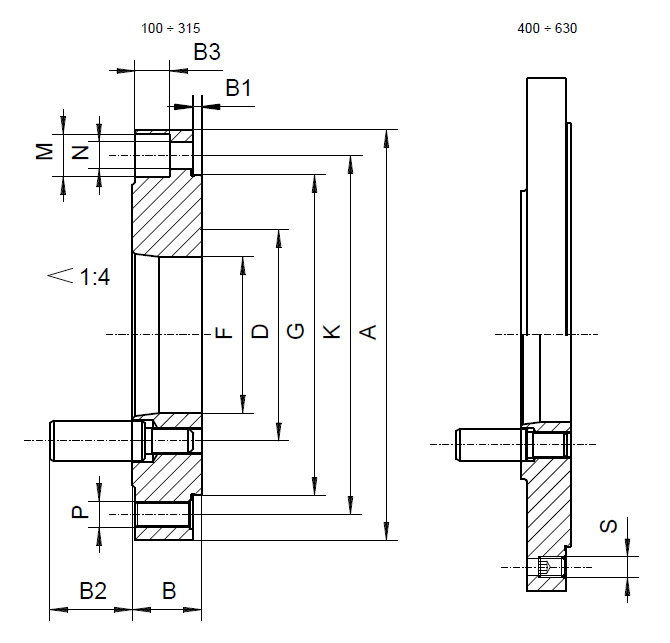

Drawing Adapter plate DIN 55029, type 8240-315-11-X

€475.50 *
€565.85 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 358245562000
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 16,3 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Adapter plate  Bison - DIN 55029 (Camlock) - fully finished - type 8240-X ... more
Close menu
Product information "Adapter plate DIN 55029, type 8240-315-11-X"

Adapter plate Bison

- DIN 55029 (Camlock)
- fully finished
- type 8240-X Ø 315 mm, taper 11

Type: fully machined
Taper: 11
DIN: 55029
Ø : 315 mm
Make: Bison
Related links to "Adapter plate DIN 55029, type 8240-315-11-X"

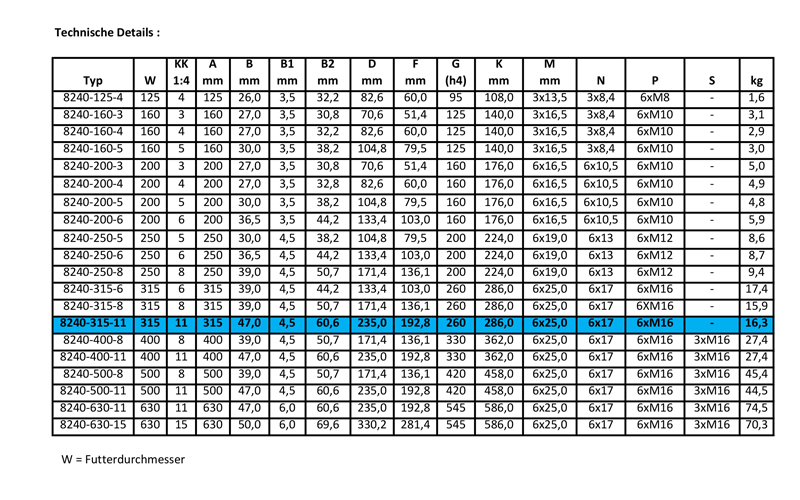

Technical data
W KK 1:4 / ST 1:4 A B B1 B2 D F G (h6) K M N P S kg 125... more
Zurück
W KK 1:4 /
ST 1:4		 A B B1 B2 D F G
(h6)		 K M N P S kg
125 4 125 26,0 3,5 32,2 82,6 60,0 95 108 3x13,5 3x8,4 6xM8 - 1,6
160 3 160 27,0 3,5 30,8 70,6 51,4 125 140 3x16,5 3x8,4 6xM10 - 3,1
160 4 160 27,0 3,5 32,2 82,6 60,0 125 140 3x16,5 3x8,4 6xM10 - 2,9
160 5 160 30,0 3,5 38,2 104,8 79,5 125 140 3x16,5 3x8,4 6xM10 - 3,0
200 4 200 27,0 3,5 32,8 82,6 60,0 160 176 6x16,5 6x10,5 6xM10 - 4,9
200 5 200 30,0 3,5 38,2 104,8 79,5 160 176 6x16,5 6x10,5 6xM10 - 4,8
200 6 200 36,5 3,5 44,2 133,4 103,0 160 176 6x16,5 6x10,5 6xM10 - 5,9
250 6 250 36,5 4,5 44,2 133,4 103,0 200 224 6x19,0 6x13 6xM12 - 8,7
250 8 250 39,0 4,5 50,7 171,4 136,1 200 224 6x19,0 6x13 6xM12 - 9,4
315 6 315 39,0 4,5 44,2 133,4 103,0 260 286 6x25,0 6x17 6xM16 - 17,4
315 8 315 39,0 4,5 50,7 171,4 136,1 260 286 6x25,0 6x17 6xM16 - 15,9
315 11 315 47,0 4,5 60,6 235,0 192,8 260 286 6x25,0 6x17 6xM16 - 16,3
400 8 400 39,0 4,5 50,7 171,4 136,1 330 362 6x25,0 6x17 6xM16 3xM16 27,4
400 11 400 47,0 4,5 60,6 235,0 192,8 330 362 6x25,0 6x17 6xM16 3xM16 27,4
500 11 500 47,0 4,5 60,6 235,0 192,8 420 458 6x25,0 6x17 6xM16 3xM16 44,5
630 11 630 47,0 6,0 60,6 235,0 192,8 545 586 6x25,0 6x17 6xM16 3xM16 74,5

W = Futterdurchmesser / Chuck diameter

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
