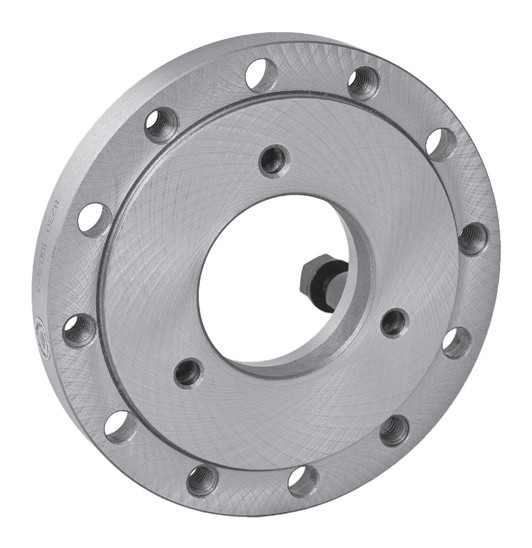

Adapter plate DIN 55027, type 8230-160-6-X

€176.25 *
€209.74 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 358230083300
  • 84662091
  • 1,9 kg
  • 0
Adapter plate  Bison - DIN 55027 - fully finished - type 8230-X  Ø 160 mm,... more
Product information "Adapter plate DIN 55027, type 8230-160-6-X"

Adapter plate Bison

- DIN 55027
- fully finished
- type 8230-X Ø 160 mm, taper 6

Type: fully machined
Taper: 6
DIN: 55027
Ø : 160 mm
Make: Bison
Related links to "Adapter plate DIN 55027, type 8230-160-6-X"

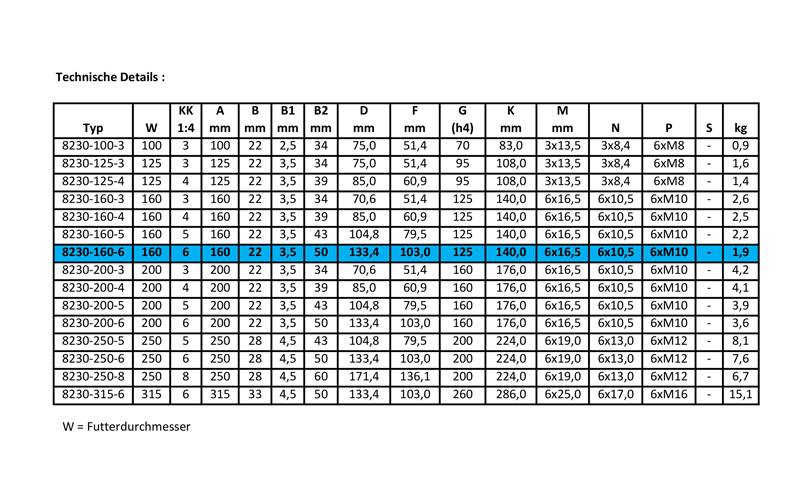

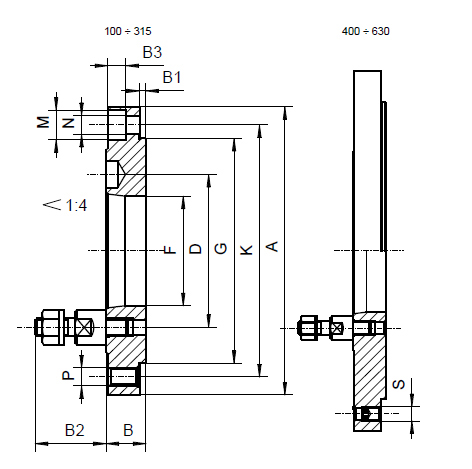

W KK 1:4 / ST 1:4 A B B1 B2 D F G (h6) K M N P S kg 160... more
W KK 1:4 /
ST 1:4
A B B1 B2 D F G
(h6)
K M N P S kg
160 4 160 22 3,5 39 85,0 60,9 125 140 6x16,5 6x10,5 6x10 - 2,5
160 5 160 22 3,5 43 104,8 79,5 125 140 6x16,5 6x10,5 6x10 - 2,2
160 6 160 22 3,5 50 133,4 103,0 125 140 6x16,5 6x10,5 6x10 - 1,9
200 5 200 22 3,5 43 104,8 79,5 160 176 6x16,5 6x10,5 6x10 - 3,9
200 6 200 22 3,5 50 133,4 103,0 160 176 6x16,5 6x10,5 6x10 - 3,6
250 6 250 28 4,5 50 133,4 103,0 200 224 6x19 6x13 6x12 - 7,6
250 8 250 28 4,5 60 171,4 136,1 200 224 6x19 6x13 6x12 - 6,7
315 6 315 33 4,5 50 133,4 103,0 260 286 6x25 6x17 6x16 - 15,1
315 8 315 33 4,5 60 171,4 136,1 260 286 6x25 6x17 6x16 - 14,0
315 11 315 33 4,5 75 235,0 192,8 260 286 6x25 6x17 6x16 - 12,2
400 8 400 36 4,5 60 171,4 136,1 330 362 6x25 6x17 6x16 3xM16 26,9
400 11 400 36 4,5 75 235,0 192,8 330 362 6x25 6x17 6x16 3xM16 24,7
500 11 500 36 4,5 75 235,0 192,8 420 458 6x25 6x17 6x16 3xM16 42,1
500 15 500 36 4,5 90 330,2 281,4 420 458 6x25 6x17 6x16 3xM16 35,7
630 11 630 42 6,0 75 235,0 192,8 545 586 6x25 6x17 6x16 3xM16 81,9

W = Futterdurchmesser / Chuck diameter

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
