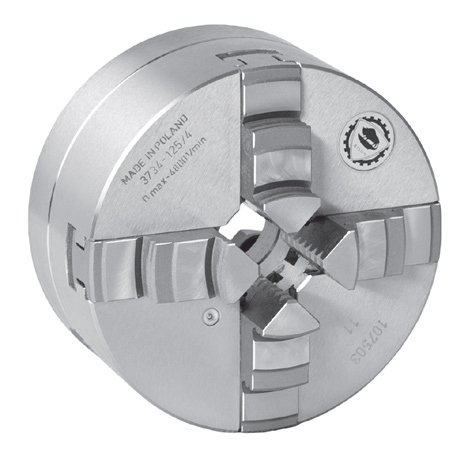

4-jaw scroll chuck Bison type 3734-400-11

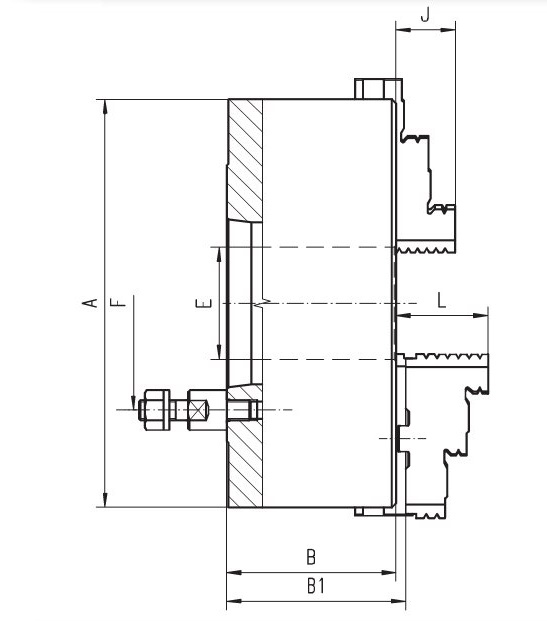

Preview: Vierbacken-Drehfutter Typ 3734-400-11 Preview: Zeichnung Vierbacken-Drehfutter Typ 3734-400-11
Vierbacken-Drehfutter Typ 3734-400-11
Zeichnung Vierbacken-Drehfutter Typ 3734-400-11

€5,474.25 *
€6,514.36 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 353734410300
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 116 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
4-jaw scroll chuck Bison - type C mounting (BAYONET) DIN 5527  - type 3734  Ø... more
Close menu
Product information "4-jaw scroll chuck Bison type 3734-400-11"

4-jaw scroll chuck Bison

- type C mounting (BAYONET) DIN 5527
- type 3734 Ø 400 mm, taper 11
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside solid jaws, 1 set of hard inside solid jaws
  and 1 wrench

Related links to "4-jaw scroll chuck Bison type 3734-400-11"

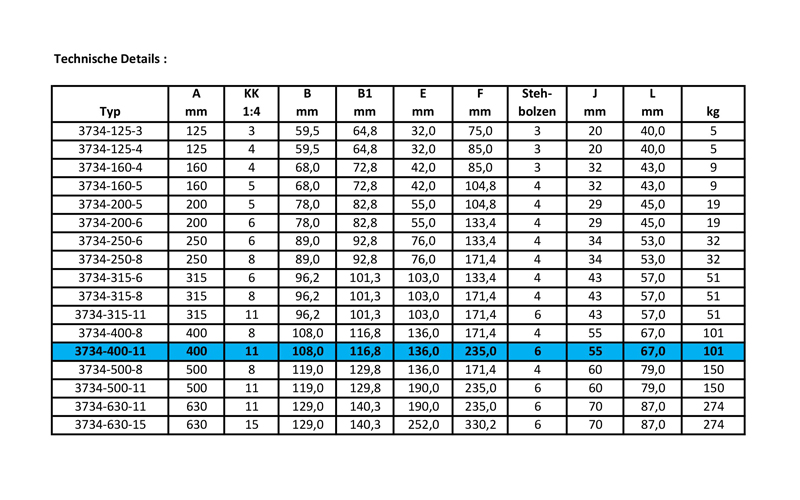

Technical data
more
Zurück

353734410300-3734-400-11
