4-jaw scroll chuck Bison type 3734-160-4

€996.00 *
€1,185.24 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353734240700
  • 84662091
  • 9 kg
  • 0
4-jaw scroll chuck Bison - type C mounting (BAYONET) DIN 5527  - type 3734  Ø... more
Product information "4-jaw scroll chuck Bison type 3734-160-4"

4-jaw scroll chuck Bison

- type C mounting (BAYONET) DIN 5527
- type 3734 Ø 160 mm, taper 4
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
  and 1 wrench

Related links to "4-jaw scroll chuck Bison type 3734-160-4"

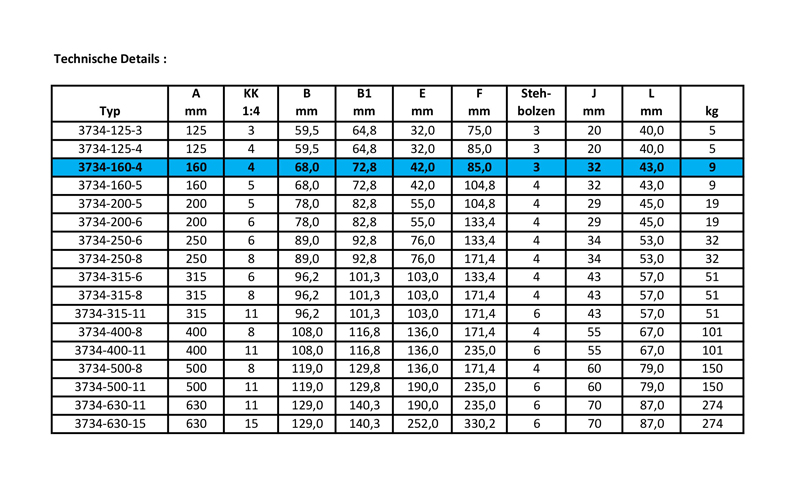

A KK 1:4 / ST 1:4 B B1 E F Stehbolzen / Stud bolts J L... more
A KK 1:4 /
ST 1:4
B B1 E F Stehbolzen /
Stud bolts
J L kg
125 4 59,5 64,8 32 85,0 3 20 40 5
160 4 68,0 72,8 42 85,0 3 32 43 9
160 5 68,0 72,8 42 104,8 4 32 43 9
200 5 78,0 82,8 55 104,8 4 29 45 19
200 6 78,0 82,8 55 133,4 4 29 45 19
250 6 89,0 92,8 76 133,4 4 34 53 32
250 8 89,0 92,8 76 171,4 4 34 53 32
315 6 96,2 101,3 103 133,4 4 43 57 51
315 8 96,2 101,3 103 171,4 4 43 57 51
400 8 108,0 116,8 136 171,4 4 55 67 101
400 11 108,0 116,8 136 235,0 6 55 67 101

Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel /
Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
