Soft top jaws for three-jaw lathe chucks Ø 400 mm

Preview: Soft top jaws, three-jaw lathe chucks Ø 400 Preview: Drawing 1 Soft top jaws, three-jaw lathe chucks Ø 400 Preview: Drawing 2 Soft top jaws, three-jaw lathe chucks Ø 400
Soft top jaws, three-jaw lathe chucks Ø 400

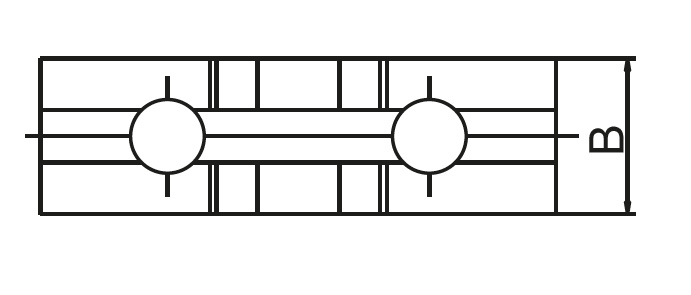

Drawing 1 Soft top jaws, three-jaw lathe chucks Ø 400

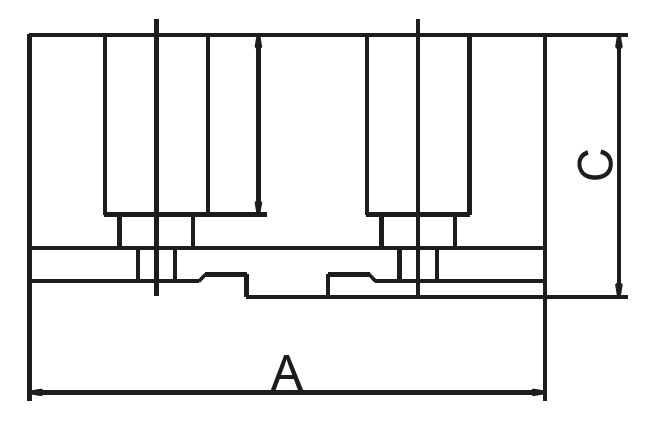

Drawing 2 Soft top jaws, three-jaw lathe chucks Ø 400

€134.14 *
€159.63 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-WAB35-400
  • Customs tariff number: 8466 2091
  • European article number: 4049794045350
  • Weight: 7 kg
  • In stock: 30
Description Technical data Evaluations 0
Description
Soft top jaws for three-jaw lathe chucks Ø 400 mm material C45, 3 pieces per set more
Close menu
Product information "Soft top jaws for three-jaw lathe chucks Ø 400 mm"

Soft top jaws for three-jaw lathe chucks Ø 400 mm

material C45,
3 pieces per set

Related links to "Soft top jaws for three-jaw lathe chucks Ø 400 mm"
Technical data
Für / for Ø mm A mm B mm C mm 125 64 22... more
Zurück
Für / for
Ø mm		 A
mm		 B
mm		 C
mm
125 64 22 38,5
160 78 25 41,5
200 90 27 43,5
250 106 32 51,5
315 120 37 55
400 140 42 64,5
500 140 42 74,5
630/800 160 50 80

Preis pro Satz / Price per set

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
