Rotary table Bison type 5859-250

€4,832.00 *
€5,750.08 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 375859030500
  • 84663000
  • 57,5 kg
  • 0
Rotary table Bison 5859-250 - horizontal / vertical rotary table - due to the three dividing... more
Product information "Rotary table Bison type 5859-250"

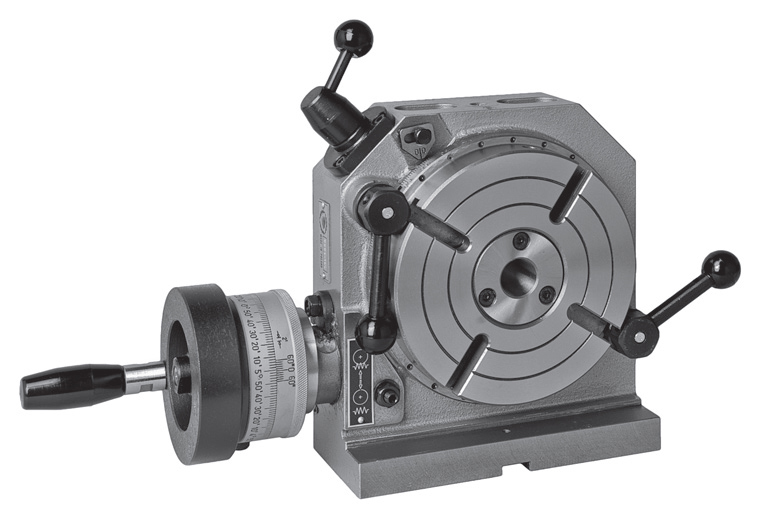

Rotary table Bison 5859-250

- horizontal / vertical rotary table
- due to the three dividing plates, division into the required
  number of sections is obtained with an accuracy of 1’
- dividing means of graduated drum with 1’30’’
- centering morse taper sleeves are hardened and ground,
  extending machine life
- depending on the size gear ratio is 1:90
- incl. 3 dividing plates with clamping bolts, slot nuts
  and table lever

- suitable tailstock:
  Bison type 5819-170-200

Related links to "Rotary table Bison type 5859-250"

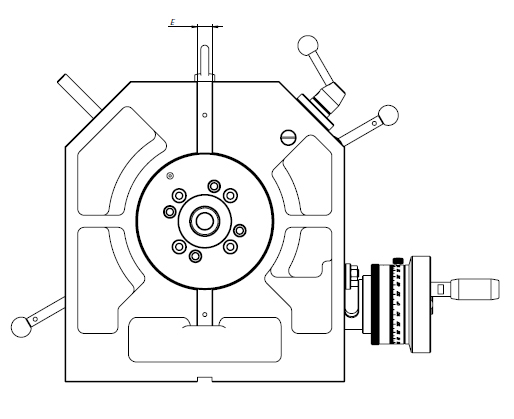

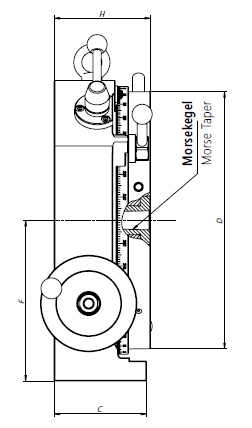

Typ / Type Übersetzung / Worm ratio A B C D E F G H L 5859-160... more
Typ /
Type
Übersetzung /
Worm ratio
A B C D E F G H L
5859-160 1:60 225,0 200 90 160 13 125 4x10 96 127,0
5859-200 1:60 270,0 245 95 200 13 150 4x10 98 147,0
5859-250 1:90 317,5 285 115 250 18 175 4x12 115 175,0
5859-320 1:90 374,0 348 115 320 18 200 4x12 120 207,0
5859-400 1:90 465,0 430 125 400 18 250 6x14 135 248,0
5859-500 1:120 582,5 535 170 500 18 315 8x16 175 310,5



MK /
MT
Flansch /
Adapters
Drehfutter /
Chucks
Maximale Belastung (daN) horizontal /
Permissible weight of workpieces (daN) horizontal
Maximale Belastung (daN) vertikal /
Permissible weight of workpieces (daN) vertikal
kg
3 160 160 85 40 28,0
3 160, 200 160, 200 120 45 34,1
3 250 250 160 80 57,5
3 315, 250 315, 250 210 110 80,0
4 400 400 350 125 140,5
5 - - 420 200 277,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
