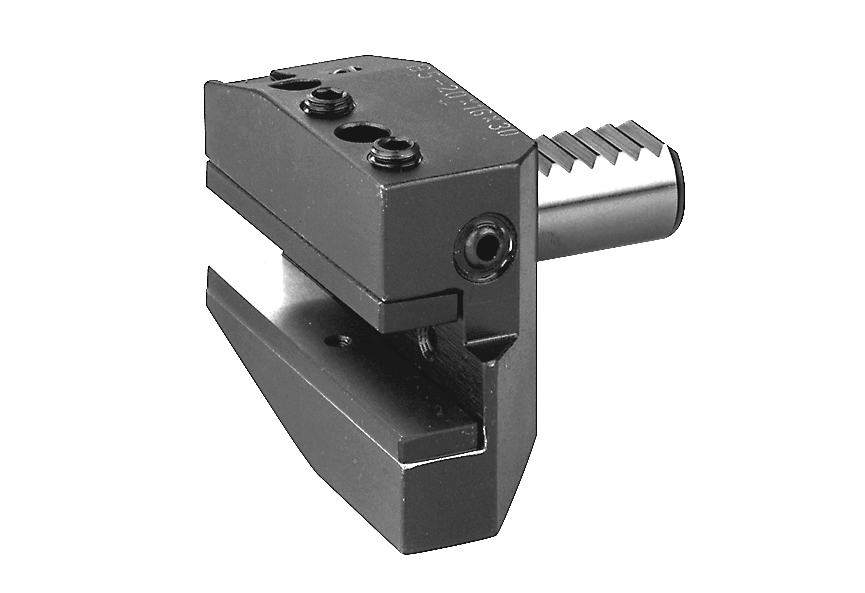

VDI 16 radial tool holder, right-hand, long, B5
€64.73*
€77.03 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
47-B5-16-12
Customs tariff number
8466 1031
European Article Number
4260073572804
Weight
0,4 kg
Stock:
7
Related links:
Request Item
Product information "VDI 16 radial tool holder, right-hand, long, B5"
Type B5, VDI 16 radial tool holder, right-hand, long
- VDI-Tool holder
- type B5-16-12
| Type: | B5 |
|---|---|
| VDI: | 16 |

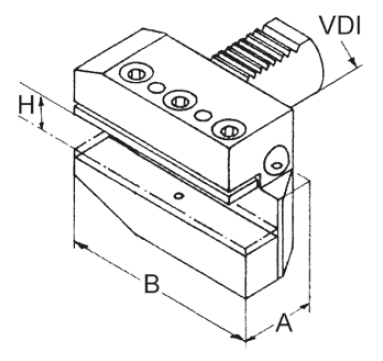

Technical Data
| VDI | H mm |
A mm |
B mm |
| 16 | 10/12 | 24 | 58 |
| 20 | 12/16 | 30 | 75 |
| 25 | 12/16 | 30 | 75 |
| 30 | 16/20 | 40 | 100 |
| 40 | 20/25 | 44 | 118 |
| 50 | 25/32 | 55 | 130 |
| 60 | 25/32 | 60 | 145 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
