V-block pair grade 0, size 75 x 40 x 30 mm

Prismenblöcke Güte 0, Grösse 75 x 40 x 30 mm
€28.80 *
€34.27 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 14-PBL-75/0
  • Customs tariff number: 8466 3000
  • European article number: 4049794068526
  • Weight: 1,15 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
V-block pair L 75 x W 40 x H 30 mm, grade 0 - machined in pairs - special cast iron -... more
Close menu
Product information "V-block pair grade 0, size 75 x 40 x 30 mm"

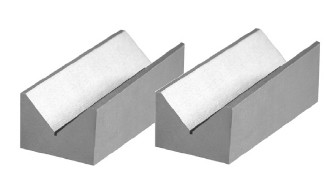

V-block pair L 75 x W 40 x H 30 mm, grade 0

- machined in pairs
- special cast iron
- V-groove 90°
- accuracy: ± 0,008 mm
- set of 2 pieces

Related links to "V-block pair grade 0, size 75 x 40 x 30 mm"
Technical data
L x B x H / L x W x H mm Güte / Grade Für / For Ø mm Genauigkeit /... more
Zurück
L x B x H /
L x W x H mm		 Güte /
Grade		 Für / For
Ø mm		 Genauigkeit /
Accuracy mm
75 x 40 x 30 0 5 - 40 ± 0,008
100 x 47 x 40 0 5 - 55 ± 0,008
150 x 55 x 45 0 5 - 60 ± 0,008

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
