Revolving tailstock centre, series 80 KOP MT 4

Revolving tailstock centre, series 80 KOP MT 4

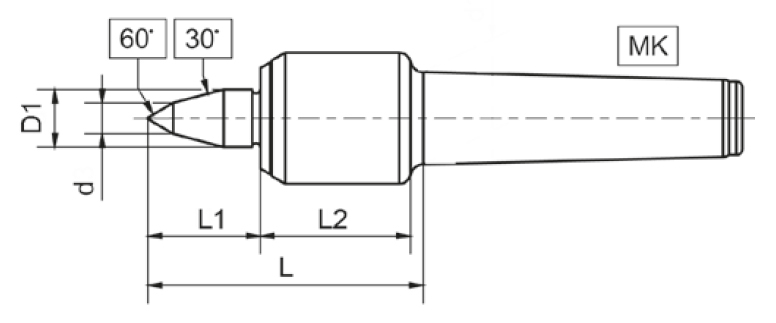

Drawing Revolving tailstock centre, series 80 KOP MT 4

€306.22 *

€364.40 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 03-80-04KOP
Customs tariff number: 8466 2091
European article number: 4260073571357
Weight: 1,1 kg
In stock: 8

Precision revolving tailstock centre, series 80 KOP with extended tip 30°/ 60° - type... more

Close menu

Product information "Revolving tailstock centre, series 80 KOP MT 4"

Precision revolving tailstock centre, series 80 KOP
with extended tip 30°/ 60°

- type 84 KOP
- MT 4

- solid design
- centre tip with needle bearings
- slim design with small casing diameter
- maintenance-free lubrication
- housing hardened and ground

Related links to "Revolving tailstock centre, series 80 KOP MT 4"

Typ / Type MK / MT D mm D1 mm L mm L1 mm L2 mm d mm Drehzahl / Speed max.... more

Zurück

Typ / Type	MK / MT	D mm	D1 mm	L mm	L1 mm	L2 mm	d mm	Drehzahl / Speed max.	Werkstück / Work piece max. kg	Rundlaufgenauigkeit / Run-out max. mm
82 KOP	2	32	15	74	29	39	8	6000	150	0,005
83 KOP	3	34	15	74	29	39	8	6000	300	0,005
84 KOP	4	43	20	86	36	43	10	6000	700	0,005
85 KOP	5	58	30	116	48	59	12	4000	1000	0,01

Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved
