Revolving tailstock centre, series 100 type 123

€150.84 *
€179.50 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 03-123
  • 8466 2091
  • 4260073571401
  • 0,75 kg
  • 1
Precision revolving tailstock centre, series 100 - type 123 - MT 2 - universal... more
Product information "Revolving tailstock centre, series 100 type 123"

Precision revolving tailstock centre, series 100

- type 123
- MT 2

- universal centre with 3 groove ball bearings
- housing hardened and ground
- centre tip from chromium-alloyed tool steel
- high concentricity
- easy and smooth running
- maintenance-free permanent lubrication

Related links to "Revolving tailstock centre, series 100 type 123"

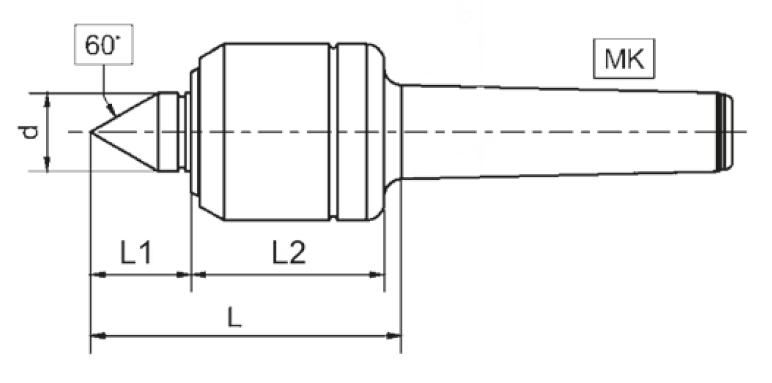

Typ / Type MK / MT D mm d mm L mm L1 mm L2 mm Drehzahl / Speed max.... more
Typ /
Type
MK /
MT
D
mm
d
mm
L
mm
L1
mm
L2
mm
Drehzahl /
Speed max.
Werkstück /
Work piece max. kg
Rundlaufgenauigkeit /
Run-out max. mm
111 1 28 12 57,5 17 34 6500 25 0,005
113 1 35 13 63,5 18 39 5500 50 0,005
121 2 35 13 66 19 39 5500 80 0,005
123 2 45 20 84 26 49 5000 100 0,005
131 3 45 20 84 26 49 5000 150 0,005
133 3 60 24 103 34 60 4000 300 0,005
141 4 60 24 105 34 60 4000 400 0,005
143 4 76 32 126 42 73 3200 650 0,008

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
