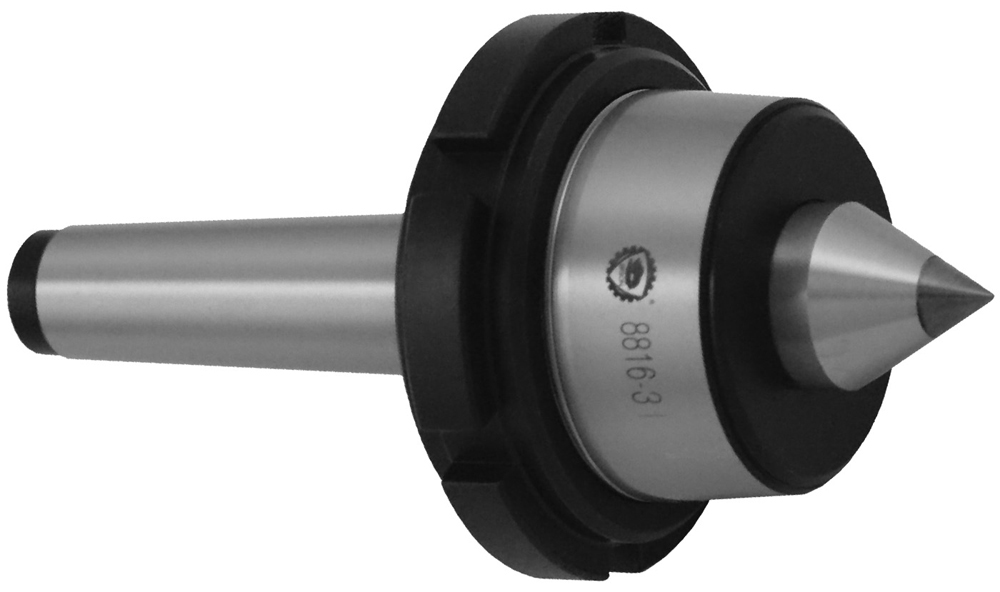

Heavy duty tailstock centre Bison type 8816-4

Preview: Heavy duty tailstock centre Bison type 8816-4 Preview: Drawing Heavy duty tailstock centre Bison type 8816-4
Heavy duty tailstock centre Bison type 8816-4

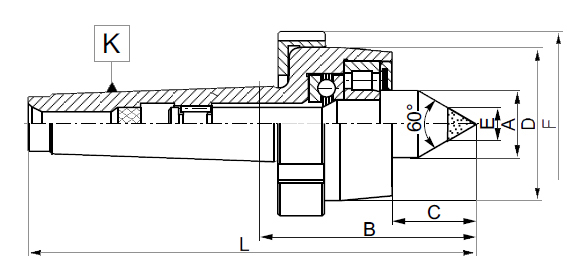

Drawing Heavy duty tailstock centre Bison type 8816-4

€274.50 *
€326.66 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 800002568
  • Customs tariff number: 84661031
  • European article number:
  • Weight: 2,03 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Heavy duty tailstock centre - with draw off nut and carbide tip - Bison type 8816 MT 4 -... more
Close menu
Product information "Heavy duty tailstock centre Bison type 8816-4"

Heavy duty tailstock centre

- with draw off nut and carbide tip
- Bison type 8816 MT 4
- standard version
- DIN 228

Related links to "Heavy duty tailstock centre Bison type 8816-4"

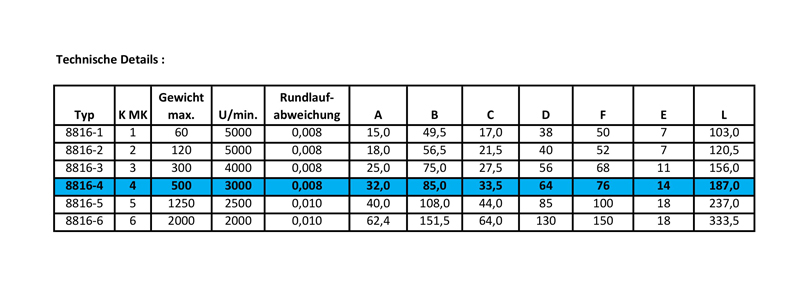

Technical data
K MK / K MT Gewicht max. / Max. weight U min. / RPM Rundlaufabweichung / Max.... more
Zurück
K MK /
K MT		 Gewicht max. /
Max. weight		 U min. /
RPM		 Rundlaufabweichung /
Max. concentr. error		 A B C D F E L
1 60 5000 0,008 15,0 49,5 17,0 38 50 7 103,0
2 120 5000 0,008 18,0 56,5 21,5 40 52 7 120,5
3 300 4000 0,008 25,0 75,0 27,5 56 68 11 156,0
4 500 3000 0,008 32,0 85,0 33,5 64 76 14 187,0
5 1250 2500 0,010 40,0 108,0 44,0 85 100 18 237,0
6 2000 2000 0,010 62,4 151,5 64,0 130 150 18 333,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
