Hard top jaw HJ05 for power chucks

€59.14 *
€70.38 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 29-HJ-05
  • 8466 2091
  • 4049794002483
  • 0,1 kg
  • 13
Hard top jaw type HJ05 for hydraulic power chucks - serration 1,5 x 60° - jaws compatible... more
Product information "Hard top jaw HJ05 for power chucks"

Hard top jaw type HJ05 for hydraulic power chucks

- serration 1,5 x 60°
- jaws compatible with Kitagawa power chucks
- price per piece

Related links to "Hard top jaw HJ05 for power chucks"

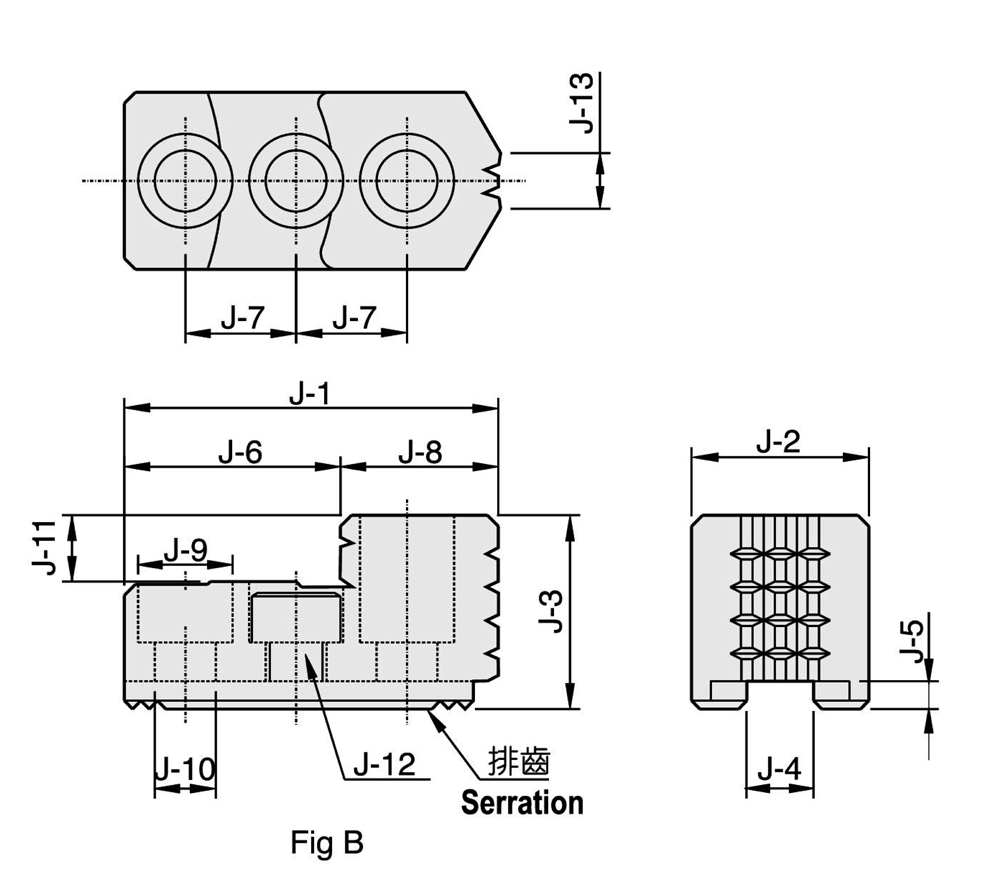

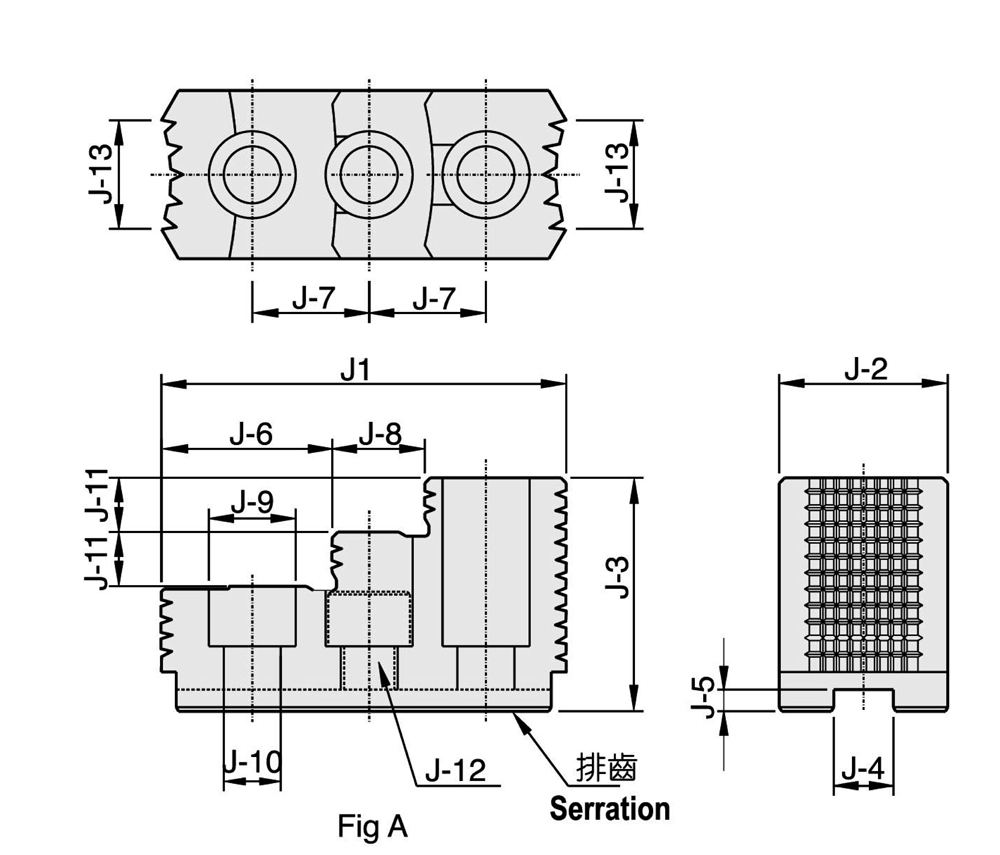

Typ / Type Abbildung / Figure J-1 mm J-2 mm... more
Typ /
Type
Abbildung /
Figure
J-1
mm
J-2
mm
J-3
mm
J-4
mm
J-5
mm
J-6
mm
J-7
mm
J-8
mm
J-9
mm
J-10
mm
J-11
mm
J-12 J-13
mm
Verzahnung /
Selection
HJ05 B 53 23 27,5 10 4 30,5 14 25,5 13,5 8,5 10 M8 6 1,5 x 60°
HJ06 B 67,5 32 35 12 5 39,5 20 23,5 17 11 12 M10 11 1,5 x 60°
HJ08 A 86 35 51 14 5 31 25 18 19 13 12 M12 12 1,5 x 60°
HJ10 A 99,5 40 54 16 5 43 30 17 19 13 13 M12 15 1,5 x 60°
HJ12 B 103 50 52 21 4 62,5 30 40,5 25 17 17 M16 30 1,5 x 60°
HJ12-1 B 103 50 52 18 5 62,5 30 40,5 22 15 17 M14 30 1,5 x 60°
HJ-15 A 149 62 86 22 8 63 43 34 32 21 20 M20 40 1,5 x 60°

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
