Double vice type TLD 100

Preview: Double vice type TLD 100 Preview: Drawing 1 Double vice type TLD 100 Preview: Drawing 2 Double vice type TLD 100

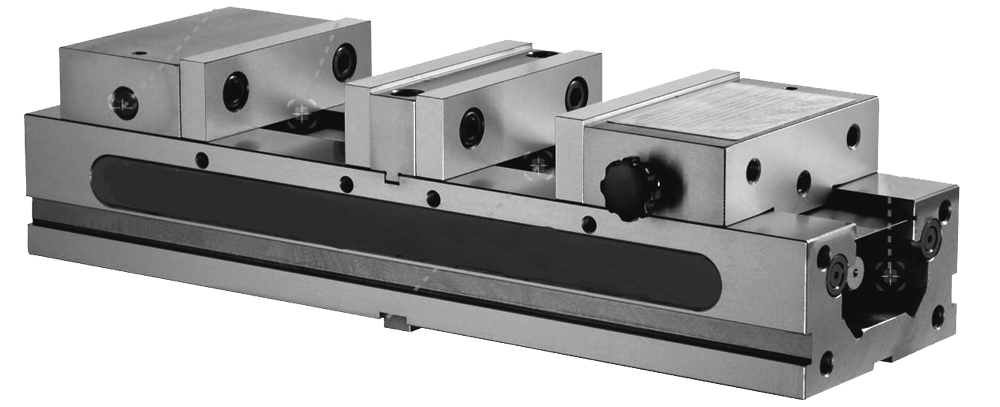

Double vice type TLD 100

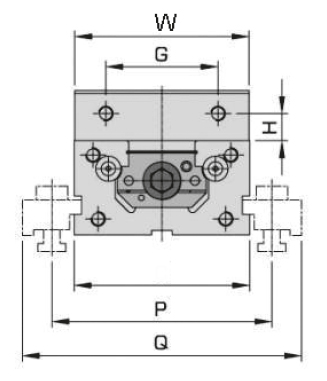

Drawing 1 Double vice type TLD 100

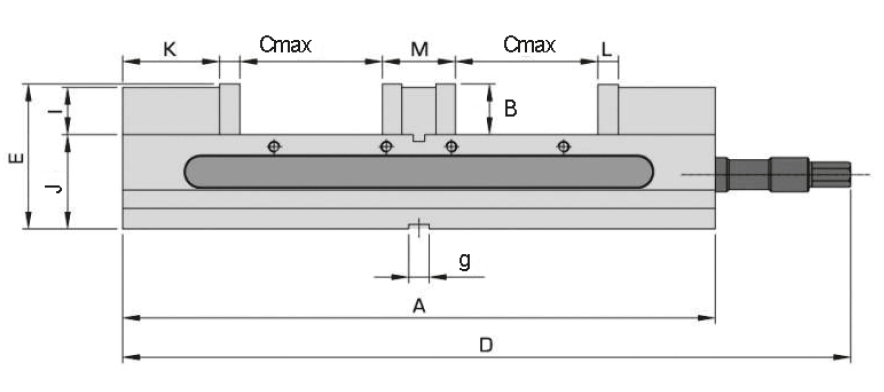

Drawing 2 Double vice type TLD 100

€1,172.59 *
€1,395.38 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: ZE-TLD-100
  • Customs tariff number: 8466 2098
  • European article number: 4049794655443
  • Weight: 23,5 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Double vice TLD 100, mechanically - self centering for 2 work pieces of same or  ... more
Close menu
Product information "Double vice type TLD 100"

Double vice TLD 100, mechanically

- self centering for 2 work pieces of same or
  different size hardened slideways
- with pull-down mechanism
- 6 clamping options

Type: Double vices, Self-centering vices
Jaw width: 100 mm
Type: mechanically
Make: Zentra
Related links to "Double vice type TLD 100"
Technical data
Typ / Type A mm J mm O mm D mm E mm W mm G mm... more
Zurück
Typ /
Type		 A
mm		 J
mm		 O
mm		 D
mm		 E
mm		 W
mm		 G
mm		 H
mm		 I
mm
100 405 63,5 104 459 101,5 102 63,5 17,5 33


B
mm		 K
mm		 L
mm		 M
mm		 g
mm		 Cmax
mm		 P
mm		 Q
mm		 Max. Spannkraft /
Clamping force daN		 kg
38 69 15 55 18 90 143 195 2600 20


Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
