Locator-grid cube, type MS17-800/16

€6,582.24 *
€7,832.87 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 38-MS17-800/16
  • 9017 2039
  • 4049794675137
  • 710 kg
  • 1
Locator-grid cube  MS17-800/16 - GG 30 stress-annealed - cube: 800 x 800 mm -... more
Product information "Locator-grid cube, type MS17-800/16"

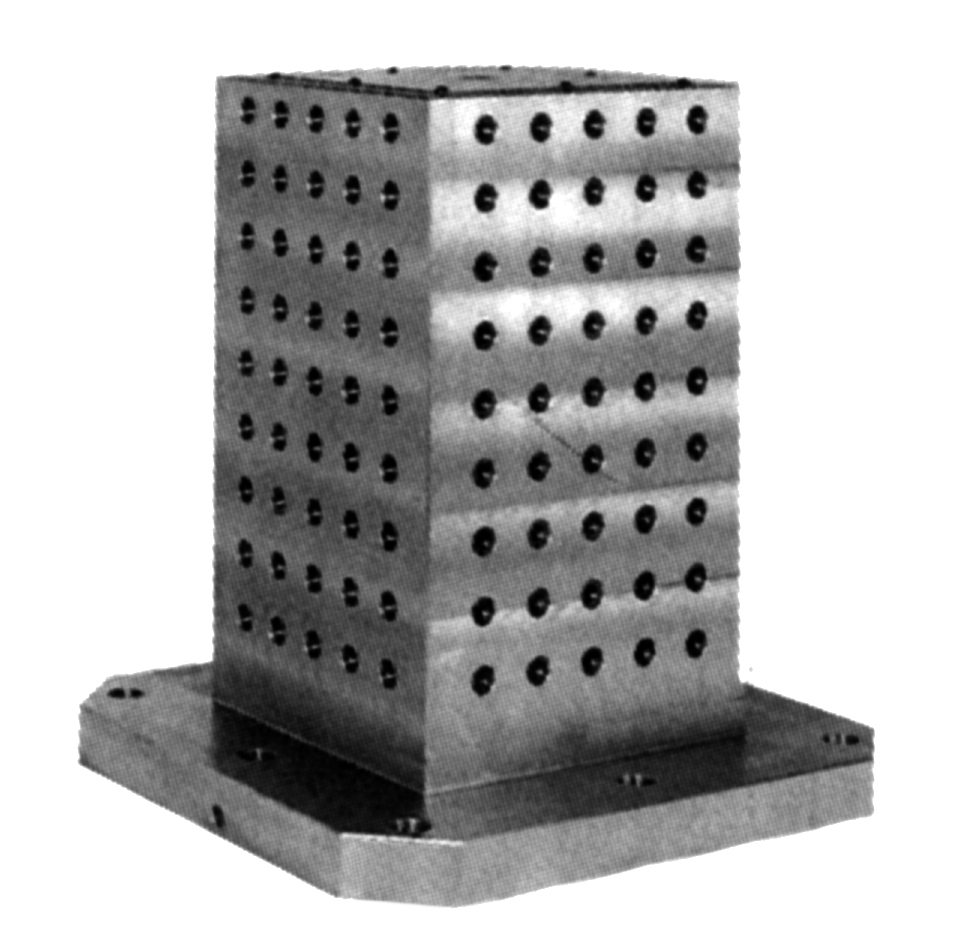

Locator-grid cube MS17-800/16

- GG 30 stress-annealed

- cube: 800 x 800 mm
- 504 holes Ø 16 mm

Related links to "Locator-grid cube, type MS17-800/16"

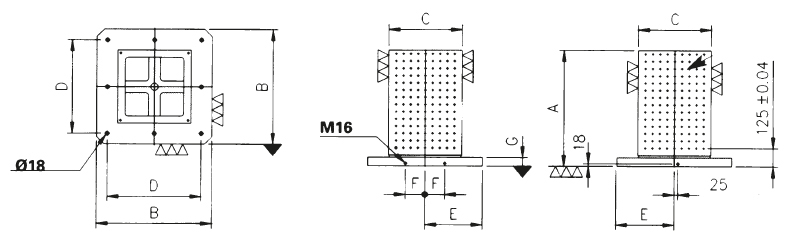

A mm B mm C mm D mm E mm F mm G mm Rasterbohrung / Grid holes (F7) Ø... more
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Rasterbohrung /
Grid holes (F7) Ø
Raster /
Spacing
Anz. Bohrung /
No. Of holes
Befest.-Löcher /
Fixing holes
kg
500 400 250 320 200 55 50 12/M12 40 180 4 145
600 500 300 400 250 75 50 12/M12 40 264 8 230
700 630 350 500 315 100 50 12/M12 40 392 8 380
800 800 500 640 400 135 50 12/M12 40 704 8 720
500 400 250 3200 200 55 50 16/M16 50 112 4 143
600 500 300 400 250 75 50 16/M16 50 180 8 228
700 630 350 500 315 100 50 16/M16 50 288 8 376
800 800 500 640 400 135 50 16/M16 50 504 8 710

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
