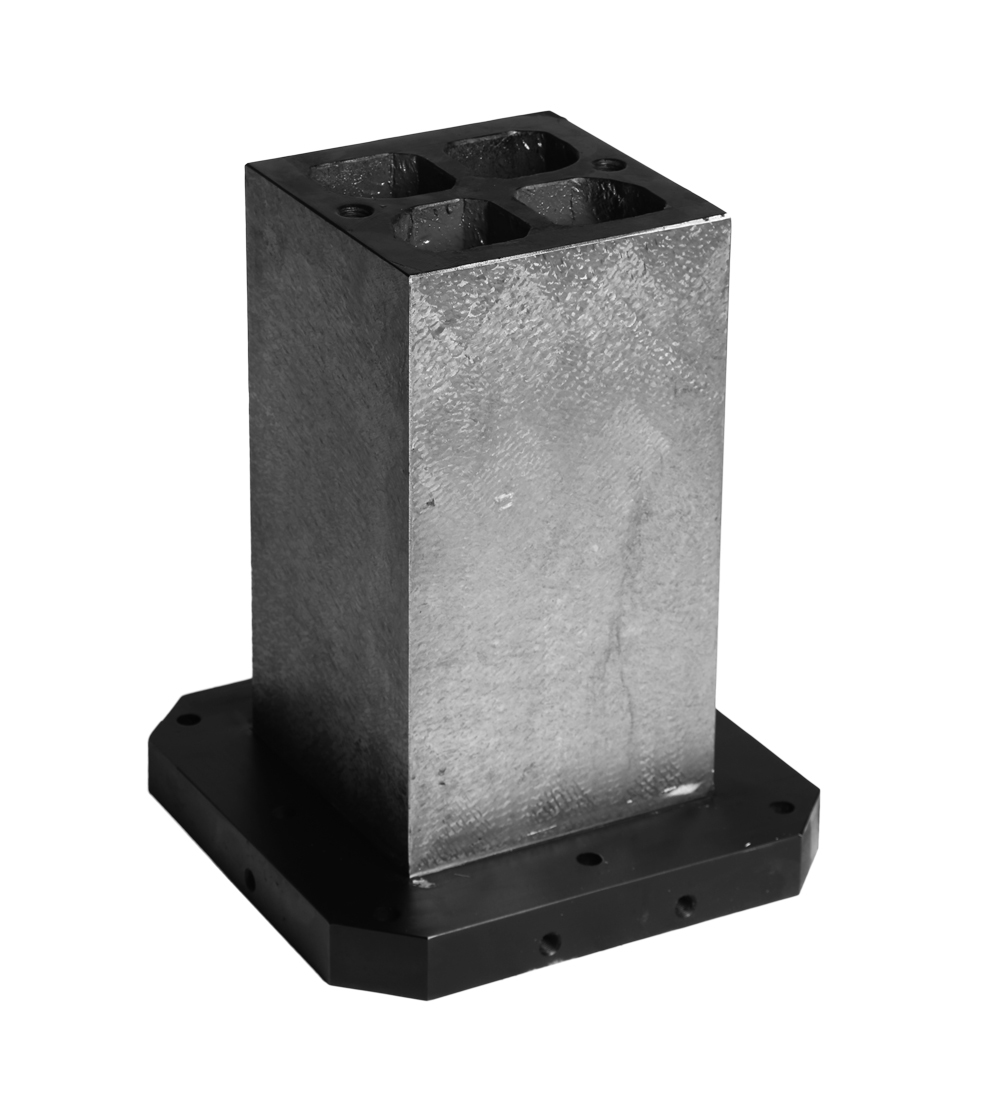

Clamping cube, type FE50-800

Preview: Clamping cube, type FE50-800 Preview: Drawing 1 Clamping cube, type FE50-800 Preview: DRawing 2 Clamping cube, type FE50-800
Clamping cube, type FE50-800
Drawing 1 Clamping cube, type FE50-800

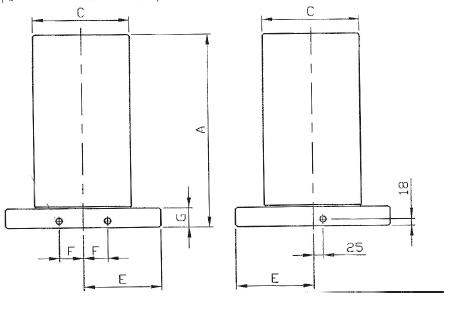

DRawing 2 Clamping cube, type FE50-800

€4,403.52 *
€5,240.19 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 38-FE50-800
  • Customs tariff number: 9017 2039
  • European article number: 4049794009994
  • Weight: 745 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Clamping cube t ype FE50-800 - base: 800 x 800 mm, height: 800 mm - GG 30 stress-annealed more
Close menu
Product information "Clamping cube, type FE50-800"

Clamping cube type FE50-800

- base: 800 x 800 mm, height: 800 mm
- GG 30 stress-annealed

Related links to "Clamping cube, type FE50-800"
Technical data
A mm B mm C mm D mm E mm F mm G mm Befest.-Löcher / Fixing holes kg... more
Zurück
A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 Befest.-Löcher /
Fixing holes		 kg
500 400 250 320 200 55 50 4 175
600 500 300 400 250 75 50 8 240
700 630 350 500 315 100 50 8 390
800 800 500 640 400 135 50 8 745

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
