Locator-grid cube, type MS17-500/16

Preview: Locator-grid cube, type MS17-500/16 Preview: Drawing Locator-grid cube, type MS17-500/16

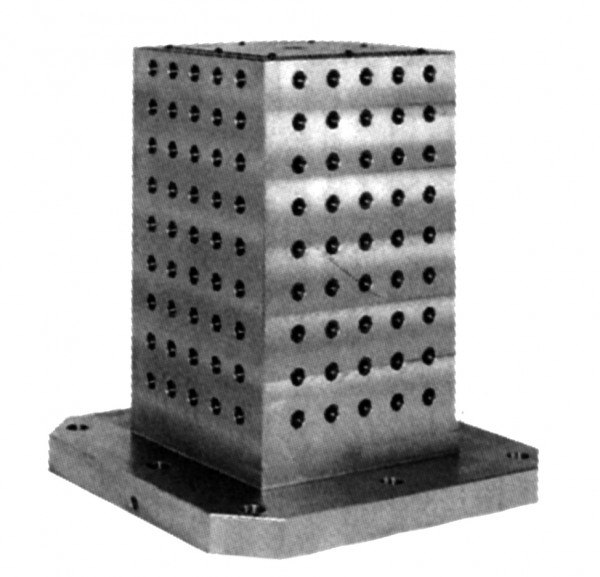

Locator-grid cube, type MS17-500/16

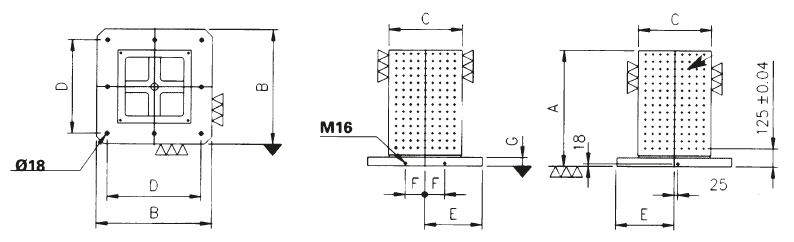

Drawing Locator-grid cube, type MS17-500/16

€1,550.95 *
€1,845.63 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 38-MS17-500/16
  • Customs tariff number: 9017 2039
  • European article number: 4049794675106
  • Weight: 152 kg
  • In stock: 1
Description Technical data Product Safety Information Evaluations 0
Description
Locator-grid cube MS17-500/16 - GG 30 stress-annealed - cube: 500 x 400 mm - 112... more
Close menu
Product information "Locator-grid cube, type MS17-500/16"

Locator-grid cube MS17-500/16

- GG 30 stress-annealed

- cube: 500 x 400 mm
- 112 holes Ø 16 mm

Related links to "Locator-grid cube, type MS17-500/16"
Technical data
A mm B mm C mm D mm E mm F mm G mm Rasterbohrung / Grid holes (F7) Ø... more
Zurück
A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 Rasterbohrung /
Grid holes (F7) Ø		 Raster /
Spacing		 Anz. Bohrung /
No. Of holes		 Befest.-Löcher /
Fixing holes		 kg
500 400 250 320 200 55 50 12/M12 40 180 4 145
600 500 300 400 250 75 50 12/M12 40 264 8 230
700 630 350 500 315 100 50 12/M12 40 392 8 380
800 800 500 640 400 135 50 12/M12 40 704 8 720
500 400 250 3200 200 55 50 16/M16 50 112 4 143
600 500 300 400 250 75 50 16/M16 50 180 8 228
700 630 350 500 315 100 50 16/M16 50 288 8 376
800 800 500 640 400 135 50 16/M16 50 504 8 710

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
