Adapter plate DIN 55027, type 8232-250-6

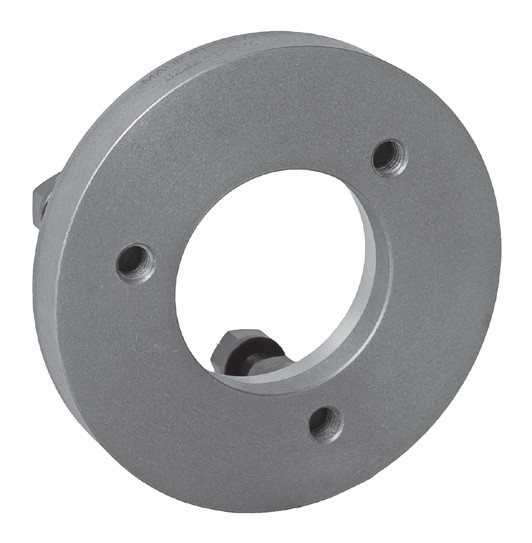

Preview: Adapter plate DIN 55027, type 8232-250-6 Preview: Drawing Adapter plate DIN 55027, type 8232-250-6
Adapter plate DIN 55027, type 8232-250-6

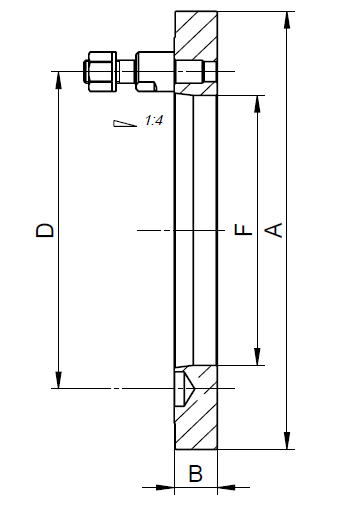

Drawing Adapter plate DIN 55027, type 8232-250-6

€247.50 *
€294.53 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 358232160900
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 16 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Adapter plate  Bison - DIN 55027 - semi machined, rough on the chuck side -... more
Close menu
Product information "Adapter plate DIN 55027, type 8232-250-6"

Adapter plate Bison

- DIN 55027
- semi machined, rough on the chuck side
- type 8232 Ø 250 mm, taper 6

Type: semi-machined
Taper: 6
DIN: 55027
Ø : 250 mm
Make: Bison
Related links to "Adapter plate DIN 55027, type 8232-250-6"

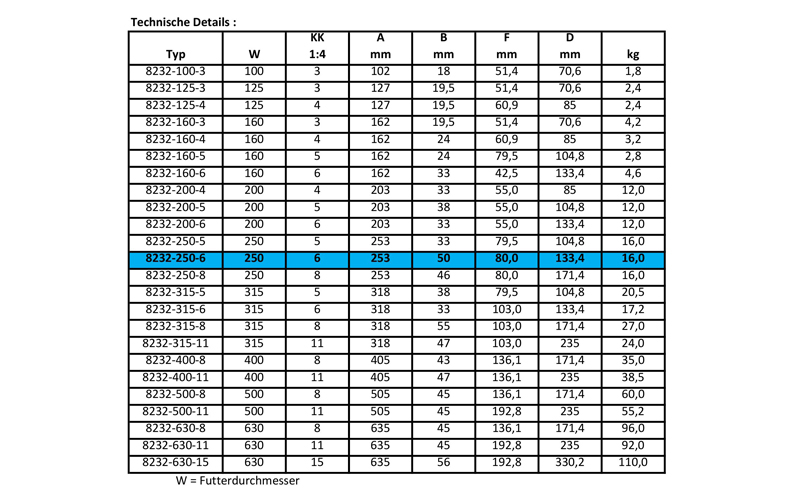

Technical data
W KK 1:4 / ST 1:4 A B F D kg 100 3 102 18,0 51,4 70,6 1,8... more
Zurück
W KK 1:4 /
ST 1:4		 A B F D kg
100 3 102 18,0 51,4 70,6 1,8
125 3 127 19,5 51,4 70,6 2,4
125 4 127 19,5 60,9 85,0 2,4
160 4 162 24,0 60,9 85,0 3,2
160 5 162 24,0 79,5 104,8 2,8
160 6 162 33,0 42,5 133,4 4,6
200 4 203 33,0 55,0 85,0 12,0
200 5 203 38,0 55,0 104,8 12,0
200 6 203 33,0 55,0 133,4 12,0
250 5 253 33,0 79,5 104,8 16,0
250 6 253 50,0 80,0 133,4 16,0
250 8 253 46,0 80,0 171,4 16,0
315 6 318 33,0 103,0 133,4 17,2
315 8 318 55,0 103,0 171,4 27,0
315 11 318 47,0 103,0 235,0 24,0
400 8 405 43,0 136,1 171,4 42,0
400 11 405 47,0 136,1 235,0 38,5
500 8 505 45,0 136,1 171,4 72,0
500 11 505 45,0 192,8 235,0 72,0
630 11 635 45,0 192,8 235,0 105,0
630 15 635 56,0 192,8 330,2 105,0

W = Futterdurchmesser / Chuck diameter

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
