Adapter plate DIN 55027, type 8232-315-8
Product number:
358232210000
Customs tariff number
84662091
European Article Number
Weight
27 kg
Stock:
0
Related links:
Request Item
Product information "Adapter plate DIN 55027, type 8232-315-8"

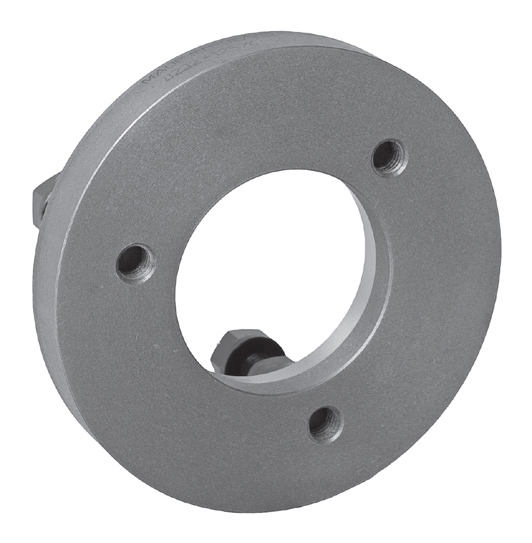

Adapter plate Bison
- DIN 55027
- semi machined, rough on the chuck side
- type 8232 Ø 315 mm, taper 8
| DIN: | 55027 |
|---|---|
| Make: | Bison |
| Taper: | 8 |
| Type: | semi-machined |
| Ø : | 315 mm |

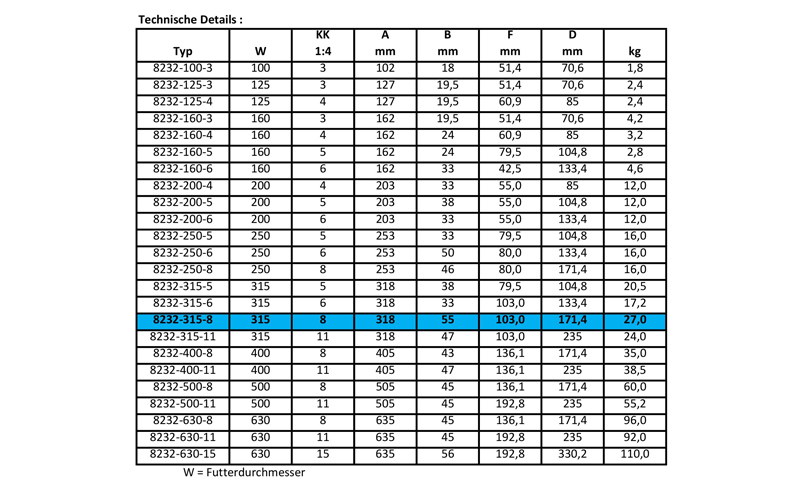

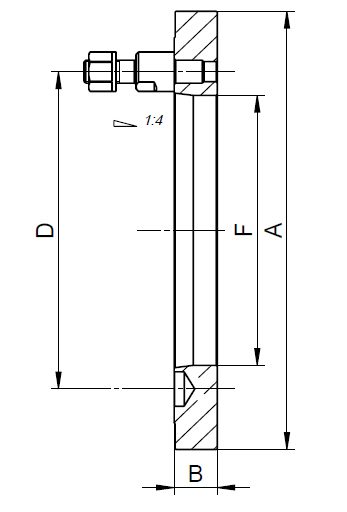

Technical Data
| W | KK 1:4 / ST 1:4 |
A | B | F | D | kg |
| 100 | 3 | 102 | 18,0 | 51,4 | 70,6 | 1,8 |
| 125 | 3 | 127 | 19,5 | 51,4 | 70,6 | 2,4 |
| 125 | 4 | 127 | 19,5 | 60,9 | 85,0 | 2,4 |
| 160 | 4 | 162 | 24,0 | 60,9 | 85,0 | 3,2 |
| 160 | 5 | 162 | 24,0 | 79,5 | 104,8 | 2,8 |
| 160 | 6 | 162 | 33,0 | 42,5 | 133,4 | 4,6 |
| 200 | 4 | 203 | 33,0 | 55,0 | 85,0 | 12,0 |
| 200 | 5 | 203 | 38,0 | 55,0 | 104,8 | 12,0 |
| 200 | 6 | 203 | 33,0 | 55,0 | 133,4 | 12,0 |
| 250 | 5 | 253 | 33,0 | 79,5 | 104,8 | 16,0 |
| 250 | 6 | 253 | 50,0 | 80,0 | 133,4 | 16,0 |
| 250 | 8 | 253 | 46,0 | 80,0 | 171,4 | 16,0 |
| 315 | 6 | 318 | 33,0 | 103,0 | 133,4 | 17,2 |
| 315 | 8 | 318 | 55,0 | 103,0 | 171,4 | 27,0 |
| 315 | 11 | 318 | 47,0 | 103,0 | 235,0 | 24,0 |
| 400 | 8 | 405 | 43,0 | 136,1 | 171,4 | 42,0 |
| 400 | 11 | 405 | 47,0 | 136,1 | 235,0 | 38,5 |
| 500 | 8 | 505 | 45,0 | 136,1 | 171,4 | 72,0 |
| 500 | 11 | 505 | 45,0 | 192,8 | 235,0 | 72,0 |
| 630 | 11 | 635 | 45,0 | 192,8 | 235,0 | 105,0 |
| 630 | 15 | 635 | 56,0 | 192,8 | 330,2 | 105,0 |
| W = Futterdurchmesser / Chuck diameter | ||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
