- Order number: 358232150700
- Customs tariff number: 84662091
- European article number:
- Weight: 16 kg
- In stock: 0

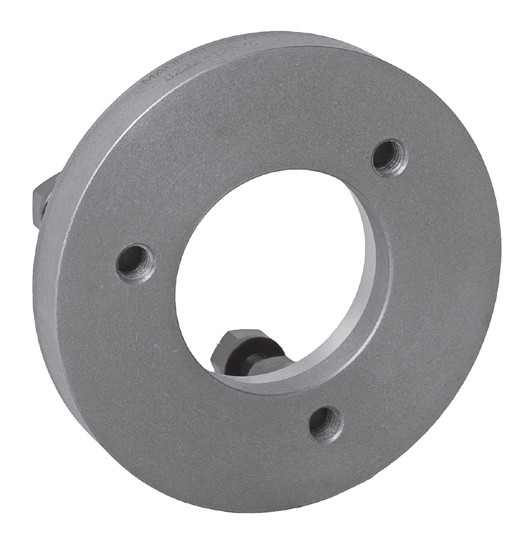

Adapter plate Bison
- DIN 55027 - semi machined, rough on the chuck side -... more
Product information "Adapter plate DIN 55027, type 8232-250-5"
Adapter plate Bison
- DIN 55027
- semi machined, rough on the chuck side
- type 8232 Ø 250 mm, taper 5
Type: | semi-machined |
Taper: | 5 |
DIN: | 55027 |
Ø : | 250 mm |
Make: | Bison |
Related links to "Adapter plate DIN 55027, type 8232-250-5"

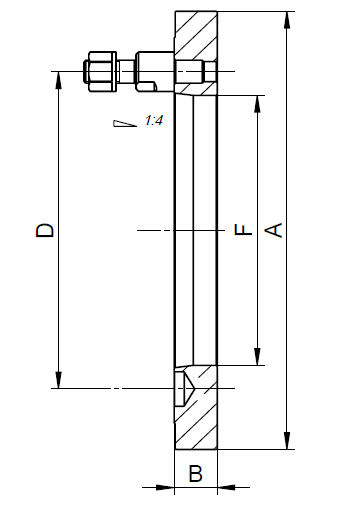

W
KK 1:4 / ST 1:4
A
B
F
D
kg
100
3
102
18,0
51,4
70,6
1,8... more
W | KK 1:4 / ST 1:4 |
A | B | F | D | kg |
100 | 3 | 102 | 18,0 | 51,4 | 70,6 | 1,8 |
125 | 3 | 127 | 19,5 | 51,4 | 70,6 | 2,4 |
125 | 4 | 127 | 19,5 | 60,9 | 85,0 | 2,4 |
160 | 4 | 162 | 24,0 | 60,9 | 85,0 | 3,2 |
160 | 5 | 162 | 24,0 | 79,5 | 104,8 | 2,8 |
160 | 6 | 162 | 33,0 | 42,5 | 133,4 | 4,6 |
200 | 4 | 203 | 33,0 | 55,0 | 85,0 | 12,0 |
200 | 5 | 203 | 38,0 | 55,0 | 104,8 | 12,0 |
200 | 6 | 203 | 33,0 | 55,0 | 133,4 | 12,0 |
250 | 5 | 253 | 33,0 | 79,5 | 104,8 | 16,0 |
250 | 6 | 253 | 50,0 | 80,0 | 133,4 | 16,0 |
250 | 8 | 253 | 46,0 | 80,0 | 171,4 | 16,0 |
315 | 6 | 318 | 33,0 | 103,0 | 133,4 | 17,2 |
315 | 8 | 318 | 55,0 | 103,0 | 171,4 | 27,0 |
315 | 11 | 318 | 47,0 | 103,0 | 235,0 | 24,0 |
400 | 8 | 405 | 43,0 | 136,1 | 171,4 | 42,0 |
400 | 11 | 405 | 47,0 | 136,1 | 235,0 | 38,5 |
500 | 8 | 505 | 45,0 | 136,1 | 171,4 | 72,0 |
500 | 11 | 505 | 45,0 | 192,8 | 235,0 | 72,0 |
630 | 11 | 635 | 45,0 | 192,8 | 235,0 | 105,0 |
630 | 15 | 635 | 56,0 | 192,8 | 330,2 | 105,0 |
W = Futterdurchmesser / Chuck diameter | ||||||
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
