Revolving tailstock centre, 805 KOP MT 3

€861.41 *
€1,025.08 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 03-835KOP
  • 8466 2091
  • 4049794005569
  • 1,5 kg
  • 2
High performance revolving tailstock centre, series 805 KOP with extended tip 30°/ 60°... more
Product information "Revolving tailstock centre, 805 KOP MT 3"

High performance revolving tailstock centre, series 805 KOP
with extended tip 30°/ 60°

- type 835 KOP
- MT 3

- especially developed for use on NC-machines with
  draw-off nut
- completely hardened and ground
- centre tip supported by needle bearings
- for high speeds with optimum concentricity
- permanent lubrication
- with additional sealing also suitable for
  grinding machines

Related links to "Revolving tailstock centre, 805 KOP MT 3"

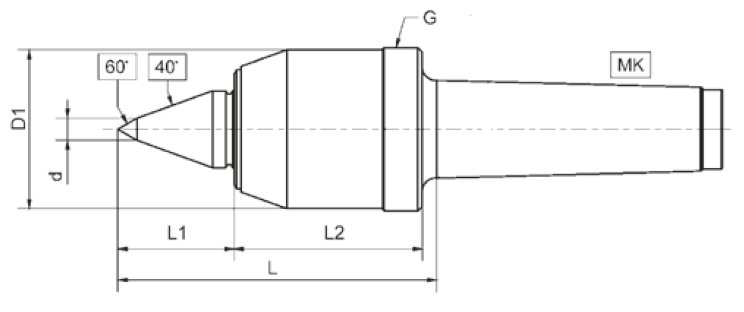

Typ / Type MK / MT D mm D1 mm L mm L1 mm L2 mm... more
Typ /
Type
MK /
MT
D
mm
D1
mm
L
mm
L1
mm
L2
mm
d
mm
Drehzahl /
Speed max.
Werkstück /
Work piece max. kg
Rundlaufgenauigkeit /
Run-out max. mm
G
835 KOP 3 52 25 104 40 56 8 12000 200 0,003 M 54 x 1,5
845 KOP 4 60 28 115 45 63 8 10000 400 0,003 M 62 x 1,5
855 KOP 5 72 35 146 53 82 10 8000 800 0,003 M 74 x 1,5
865 KOP 6 83 44 171 67 88 14 5000 1700 0,007 M 85 x 1,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
