Heavy duty bench vice Bison type 1250-100L

Preview: Heavy duty bench vice Bison type 1250-100L Preview: Drawing Heavy duty bench vice Bison type 1250-100L
Heavy duty bench vice Bison type 1250-100L

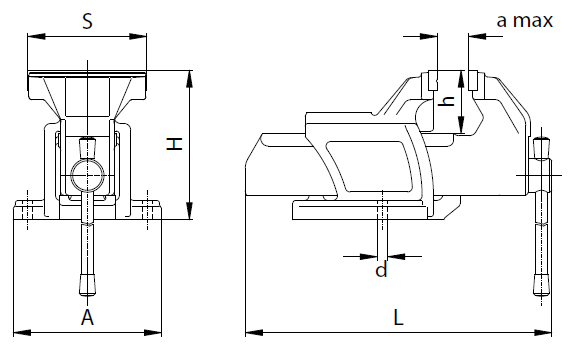

Drawing Heavy duty bench vice Bison type 1250-100L

€130.05 *
€154.76 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 321250150300
  • Customs tariff number: 82057000
  • European article number:
  • Weight: 7,5 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Heavy duty bench vice Bison 1250-100L - designed for use with milling machines, drill... more
Close menu
Product information "Heavy duty bench vice Bison type 1250-100L"

Heavy duty bench vice Bison 1250-100L

- designed for use with milling machines, drill presses, etc.
- ruggedly constructed with body and jaws made of high
  quality cast iron an other parts of alloy steel
- steel jaw inserts induction hardened and ground,
  file cut for good grip
- jaw inserts with vertical and horizontal recesses for
  clamping round workpieces
- lead-screw completely covered to keep dirt out

Related links to "Heavy duty bench vice Bison type 1250-100L"

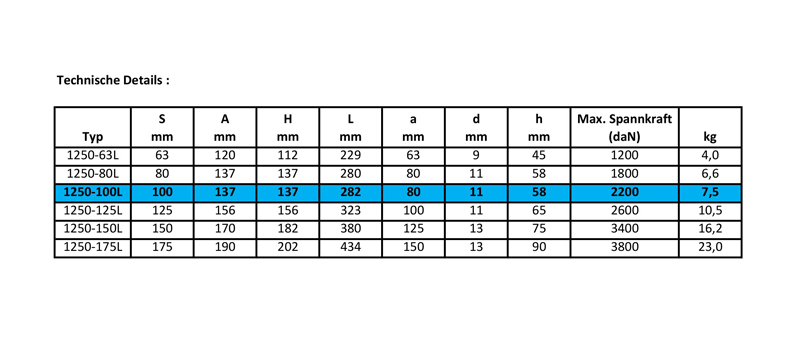

Technical data
Typ / Type S A H L a d h Max. Spannkraft (daN) / Max.... more
Zurück
Typ /
Type		 S A H L a d h Max. Spannkraft (daN) /
Max. clamping force (daN)		 kg
1250-63L 63 120 112 229 63 9 45 1.200 4,0
1250-80L 80 137 137 280 80 11 58 1.800 6,6
1250-100L 100 137 137 282 80 11 58 2.200 7,5
1250-125L 125 156 156 323 100 11 65 2.600 10,5
1250-150L 150 170 182 380 125 13 75 3.400 16,2
1250-175L 175 190 202 434 150 13 90 3.800 23,0

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
