Tee nuts for vices 18/22 mm

Preview: Tee nuts for vices 18/22 mm Preview: Drawing 1 Tee nuts for vices 18/22 mm Preview: Drawing 2 Tee nuts for vices 18/22 mm

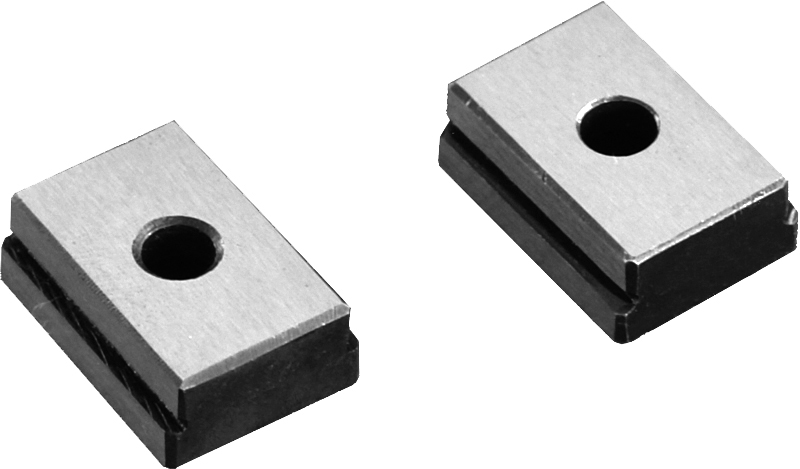

Tee nuts for vices 18/22 mm

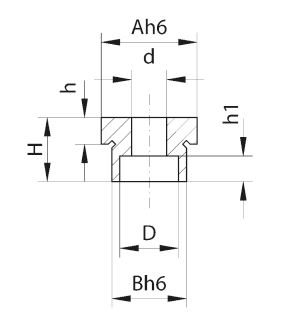

Drawing 1 Tee nuts for vices 18/22 mm
Drawing 2 Tee nuts for vices 18/22 mm

€47.66 *
€56.72 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 14-18-22
  • Customs tariff number: 8466 2098
  • European article number: 4049794009543
  • Weight: 0,05 kg
  • In stock: 30
Description Technical data Evaluations 0
Description
Tee nuts for vice - price per set A: 18 mm B: 22 mm more
Close menu
Product information "Tee nuts for vices 18/22 mm"

Tee nuts for vice

- price per set

A: 18 mm
B: 22 mm

Related links to "Tee nuts for vices 18/22 mm"
Technical data
A mm B mm L mm H mm h mm h1 mm D mm d mm 18 12 25 10 4,8 5,7... more
Zurück
A
mm		 B
mm		 L
mm		 H
mm		 h
mm		 h1
mm		 D
mm		 d
mm
18 12 25 10 4,8 5,7 10 6
18 14 25 10 4,8 5,7 10 6
18 16 25 10 4,8 5,7 10 6
18 18 25 10 0 5,7 10 6
18 20 25 10 4,8 5,7 10 6
18 22 25 10 4,8 5,7 10 6
20 12 25 10 4,8 5,7 10 6
20 14 25 10 4,8 5,7 10 6
20 16 25 10 4,8 5,7 10 6
20 18 25 10 4,8 5,7 10 6
20 20 25 10 0 5,7 10 6
20 22 25 10 4,8 5,7 10 6
22 14 25 10 4,8 5,7 10 6
22 16 25 10 4,8 5,7 10 6
22 18 25 10 4,8 5,7 10 6
22 20 25 10 4,8 5,7 10 6
22 22 25 10 0 5,7 10 6

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
