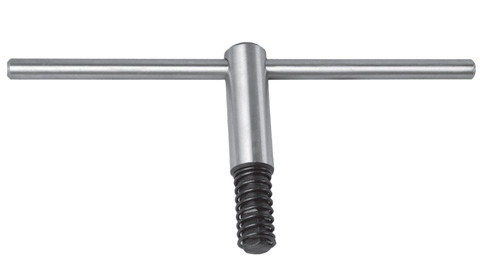

Safety wrench for scroll chucks Ø 160 / 200 mm

Preview: Safety wrench for scroll chucks Ø 160 / 200 mm Preview: Drawing Safety wrench for scroll chucks Ø 160 / 200 mm
Safety wrench for scroll chucks Ø 160 / 200 mm

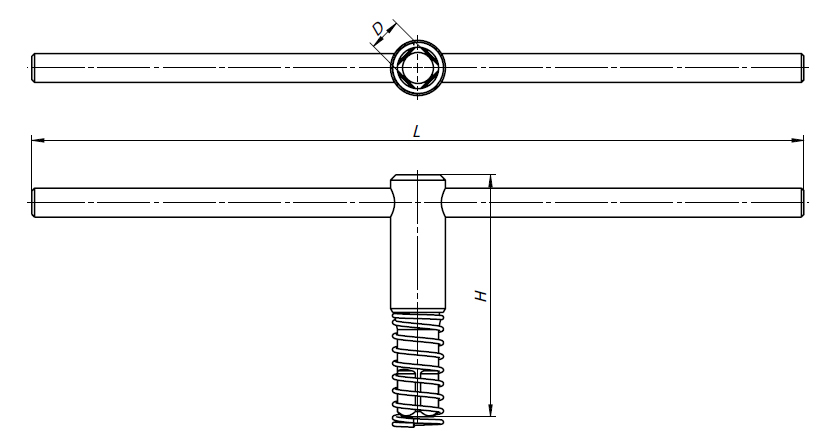

Drawing Safety wrench for scroll chucks Ø 160 / 200 mm

€41.25 *
€49.09 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 398534030600
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 0,31 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Safety wrench - for scroll chucks size Ø 160 / 200 mm - for Bison type 3105, 32**, 35**,... more
Close menu
Product information "Safety wrench for scroll chucks Ø 160 / 200 mm"

Safety wrench

- for scroll chucks size Ø 160 / 200 mm
- for Bison type 3105, 32**, 35**, 36**, 37**, 38**

Related links to "Safety wrench for scroll chucks Ø 160 / 200 mm"
Technical data

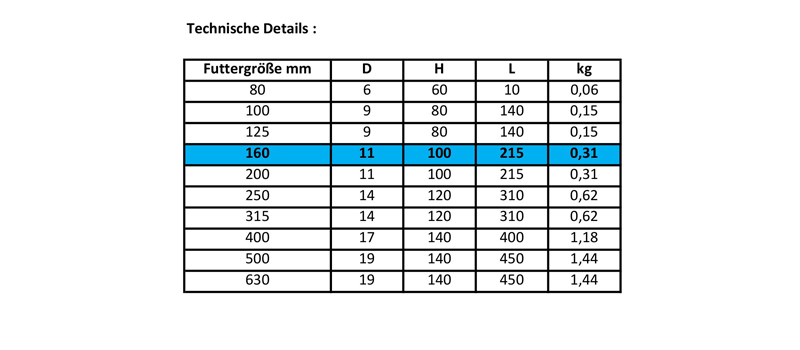

Futtergröße mm / Chuck size mm D H L kg 80 / 85 6 60 100 0,06... more
Zurück
Futtergröße mm /
Chuck size mm		 D H L kg
80 / 85 6 60 100 0,06
100 / 125 9 80 140 0,15
160 / 200 11 100 215 0,31
250 / 315 14 120 310 0,62
400 17 140 400 1,18
500 19 140 450 1,44
630 / 800 / 1000 / 1250 19 140 650 1,97

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
