3-jaw scroll chuck Bison type 3534-400-11

€3,387.00 *
€4,030.53 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353534750000
  • 84662091
  • 109 kg
  • 0
3-jaw scroll chuck Bison - type C mounting (BAYONET) DIN 5527  - type 3534  Ø... more
Product information "3-jaw scroll chuck Bison type 3534-400-11"

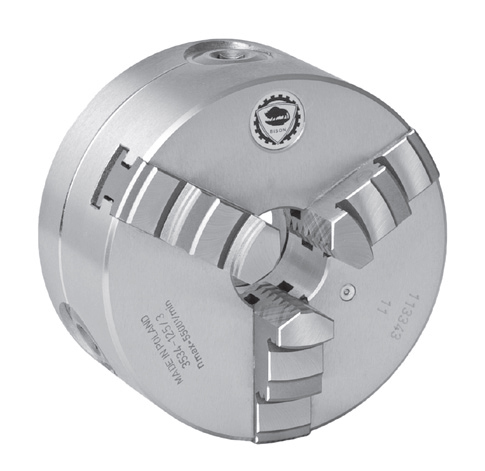

3-jaw scroll chuck Bison

- type C mounting (BAYONET) DIN 5527
- type 3534 Ø 400 mm, taper 11
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
  and 1 wrench

Type: 3-jaw lathe chucks
Ø : 400 mm
DIN: 55027
Taper: 11
Jaws: one-piece jaws
Material: Steel
Make: Bison
Related links to "3-jaw scroll chuck Bison type 3534-400-11"

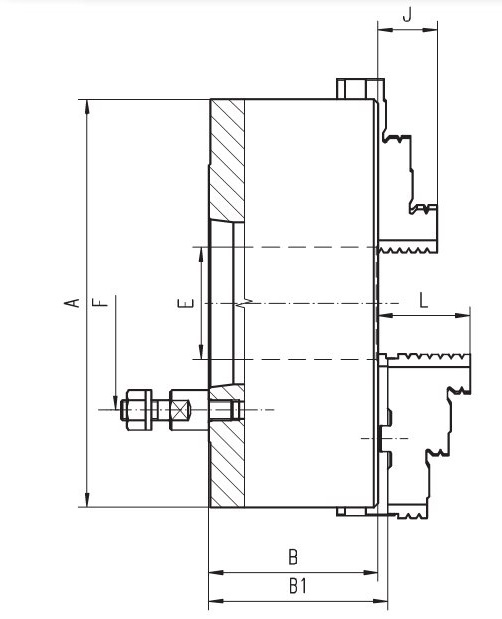

A KK 1:4 / ST 1:4 B B1 E F Stehbolzen / Stud bolts J L kg 125 3 59,5 64,8 32... more
AKK 1:4 /
ST 1:4
BB1EFStehbolzen /
Stud bolts
JLkg
125359,564,83275,0320405
125459,564,83285,0320405
160468,072,84285,0332439
160568,072,842104,8432439
200578,082,855104,84294519
200678,082,855133,44294519
250689,092,876133,44345332
250889,092,876171,44345332
315696,2101,3103133,44435751
315896,2101,3103171,44435751
31511111,7116,8103235,06435751
4008108,0116,8136171,445567101
40011108,0116,8136235,065567101
5008119,0129,8136171,446079150
50011119,0129,8190235,066079150
63011129,0140,3190235,067087274
63015129,0140,3252330,267087274

Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel /
Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
