Six-jaw lathe chuck with fine adjustment Ø 315 mm

Preview: Six-jaw lathe chuck with fine adjustment Ø 315 mm Preview: Zeichnung Six-jaw lathe chuck with fine adjustment Ø 315 mm
Six-jaw lathe chuck with fine adjustment Ø 315 mm

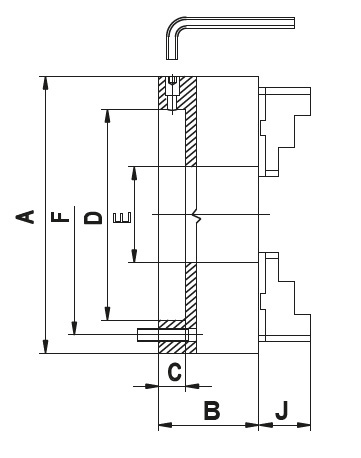

Zeichnung Six-jaw lathe chuck with fine adjustment Ø 315 mm

€1,585.58 *
€1,886.84 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-8663-315
  • Customs tariff number: 8466 2091
  • European article number: 4049794042564
  • Weight: 58 kg
  • In stock: 3
Description Technical data Evaluations 0
Description
Six-jaw lathe chuck with fine adjustment Ø 315 mm, two-piece jaws - these lathe chucks... more
Close menu
Product information "Six-jaw lathe chuck with fine adjustment Ø 315 mm"

Six-jaw lathe chuck with fine adjustment Ø 315 mm, two-piece jaws

- these lathe chucks with radial fine adjustment are especially
  suitable for holding thin-sided tubes and soft materials
- suitable for admission from the front
- adjusting accuracy within 0,005 mm
- repeatibility 0,015 mm

- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
  wrench, fixing screws

Type: 6-jaw lathe chucks
Ø : 315 mm
Jaws: two-piece jaws
Material: Steel
Make: Zentra
Related links to "Six-jaw lathe chuck with fine adjustment Ø 315 mm"
Technical data
A (Ø) mm C mm D mm E mm F mm B mm H mm RPM  MAX... more
Zurück
A (Ø)
mm		C
mm		D
mm		E
mm		F
mm		B
mm		H
mm		RPM MAX
min -1
125155535,510871,5403000
16018864214068432500
200201105517678452200
250201457622489531900
3152018010328696,2571500
40022299,2136171,5123671300
50030407,719023514479800
63030407,1252330,215087700

Inkl. je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
