Four-jaw lathe chuck DIN 55029 Ø 250 mm, Taper 8

€972.79 *
€1,157.62 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • ZE-8459-258
  • 8466 2091
  • 4049794042090
  • 36 kg
  • 0
Four-jaw lathe chuck DIN 55029 Ø 250 mm - according to DIN 55029 (Camlock), one-piece jaws... more
Product information "Four-jaw lathe chuck DIN 55029 Ø 250 mm, Taper 8"

Four-jaw lathe chuck DIN 55029 Ø 250 mm

- according to DIN 55029 (Camlock), one-piece jaws

- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing screws

Related links to "Four-jaw lathe chuck DIN 55029 Ø 250 mm, Taper 8"

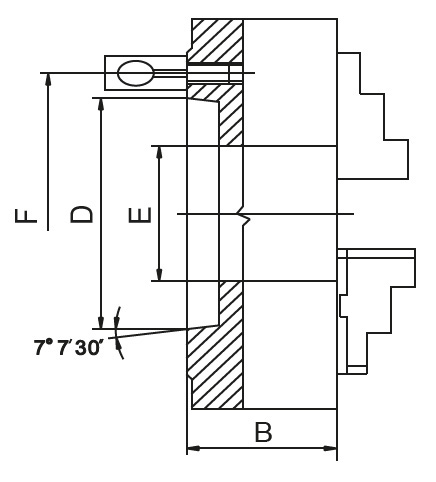

Ø mm KK / Taper B mm D mm E mm F mm RPM  MAX min -1... more
Ø
mm
KK /
Taper
B
mm
D
mm
E
mm
F
mm
RPM MAX
min -1
kg
125359,55435,570,648005
125459,563,535,582,648005
16046863,54282,645009
16056882,642104,845009
20047863,55582,6400019
20057882,655104,8400019
200678106,455133,4400019
250689106,476133,4350032
250889139,776171,4350032
315696,2106,4103133,4280051
315896,2139,7103171,4280051
4008108139,7136171,42000101
40011108196,9136171,42000101

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsbolzen /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing bolts

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
