Stationary cross table KT2, 225 x 175 mm

Preview: Stationary cross table KT2, 225 x 175 mm Preview: Drawing Stationary cross table KT2, 225 x 175 mm
Stationary cross table KT2, 225 x 175 mm

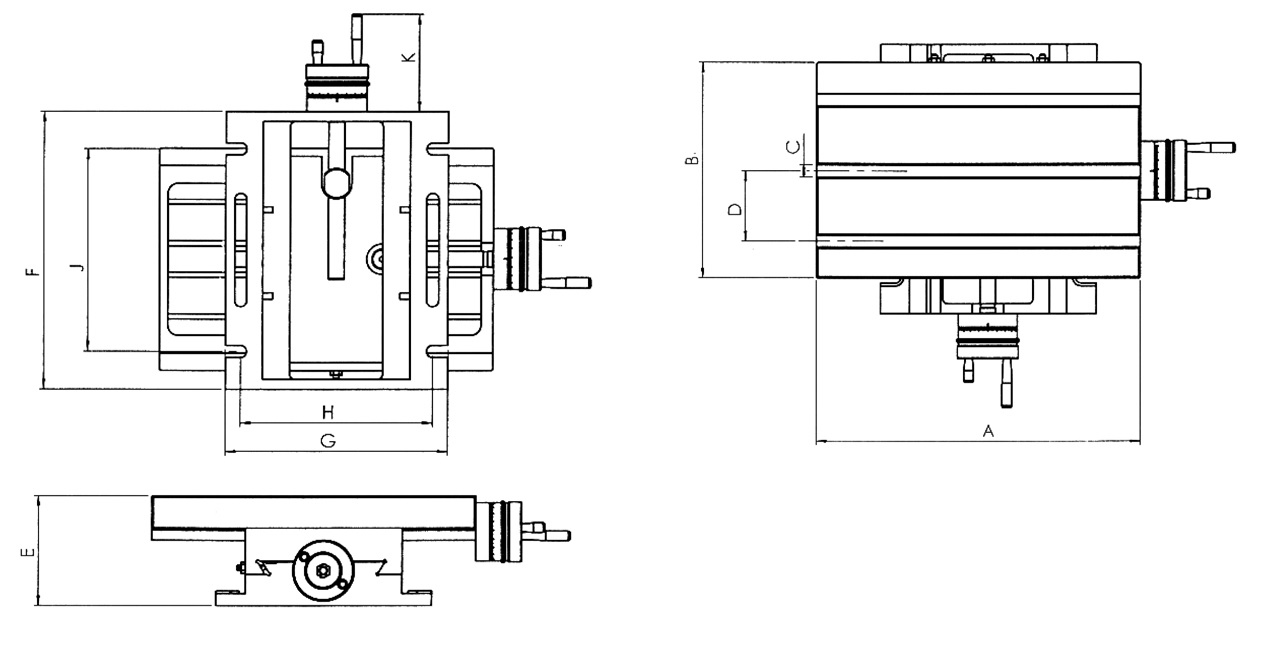

Drawing Stationary cross table KT2, 225 x 175 mm

€183.31 *
€218.14 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: BAS-KT2-225
  • Customs tariff number: 8466 3000
  • European article number: 4049794683675
  • Weight: 16 kg
  • In stock: 1
Description Technical data Product Safety Information Evaluations 0
Description
Stationary cross table BASIC type KT2-225 - with 2 axes - 225 x 175 mm - max. workpiece... more
Close menu
Product information "Stationary cross table KT2, 225 x 175 mm"

Stationary cross table BASIC type KT2-225

- with 2 axes
- 225 x 175 mm
- max. workpiece weight: 80 kg
- accuracy: 0,05 mm

Related links to "Stationary cross table KT2, 225 x 175 mm"
Technical data
X-Verfahrweg mm / X-Travel mm Y-Verfahrweg mm / Y-Travel mm A mm B mm C... more
Zurück
X-Verfahrweg mm /
X-Travel mm		 Y-Verfahrweg mm /
Y-Travel mm		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 J
mm		 K
mm
80 50 185 100 10 35 102 170 130 115 100 96
105 90 225 175 12 72 108 225 175 148 160 96
190 100 330 220 12 72 115 275 220 190 275 96
225 * 150 425 240 12 72 125 335 276 240 245 144

* mit Spindelabdeckung und Kühlmittelrinne / with spindle cover and coolant channel

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
