Collet chuck Erickson 412E DK-S, D:8 / L:100

Preview: Collet chuck Erickson 412E DK-S, D:8 / L:100 Preview: Drawing Collet chuck Erickson 412E DK-S, D:8 / L:100

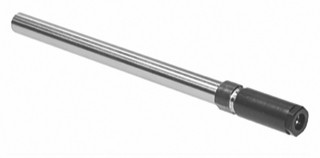

Collet chuck Erickson 412E DK-S, D:8 / L:100

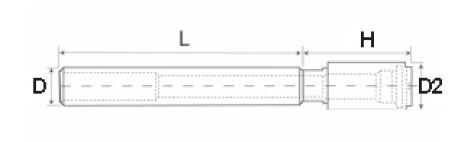

Drawing Collet chuck Erickson 412E DK-S, D:8 / L:100

€104.54 *
€124.40 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-6612-8-S-100
  • Customs tariff number: 8466 1038
  • European article number: 4049794680988
  • Weight: 0,15 kg
  • In stock: 3
Description Technical data Product Safety Information Evaluations 0
Description
Collet chuck type Erickson 412E DK-S - with cylindrical shank - D: 8 mm - collet: 412E... more
Close menu
Product information "Collet chuck Erickson 412E DK-S, D:8 / L:100"

Collet chuck type Erickson 412E DK-S

- with cylindrical shank
- D: 8 mm
- collet: 412E (DK-S)
- L: 100 mm

Type: Collet chucks
DIN: centre mount
Size: cylindrical 8 mm
for collets: 412E (DK-S)
Related links to "Collet chuck Erickson 412E DK-S, D:8 / L:100"
Technical data
D mm Spannzange / Collet L mm H mm D2 mm 8 412E (DK-S)... more
Zurück
D
mm		 Spannzange /
Collet		 L
mm		 H
mm		 D2
mm
8 412E (DK-S) 100 32 10
12 416E (DK30) 76 36 14
12 416E (DK30) 140 36 14
20 417E (DK20) 76 44 21
20 417E (DK20) 140 44 21
25 418E (DK10) 76 49,4 27
25 418E (DK10) 140 49,4 27

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
