Collet chuck Erickson 417E DK20, D:20 / L:140

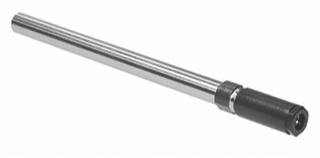

Preview: Collet chuck Erickson 417E DK20, D:20 / L:140 Preview: Drawing Collet chuck Erickson 417E DK20, D:20 / L:140
Collet chuck Erickson 417E DK20, D:20 / L:140

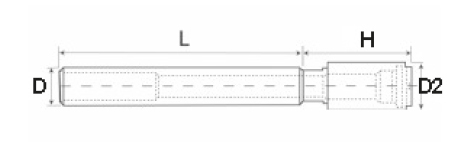

Drawing Collet chuck Erickson 417E DK20, D:20 / L:140

€90.22 *
€107.36 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 13-6612-20-20-140
  • Customs tariff number: 8466 1038
  • European article number: 4049794681022
  • Weight: 3,4 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Collet chuck type Erickson 417E DK20 - with cylindrical shank - D: 20 mm - collet: 417E... more
Close menu
Product information "Collet chuck Erickson 417E DK20, D:20 / L:140"

Collet chuck type Erickson 417E DK20

- with cylindrical shank
- D: 20 mm
- collet: 417E (DK20)
- L: 140 mm

Related links to "Collet chuck Erickson 417E DK20, D:20 / L:140"
Technical data
D mm Spannzange / Collet L mm H mm D2 mm 8 412E (DK-S) 100 32 10... more
Zurück
D
mm		 Spannzange /
Collet		 L
mm		 H
mm		 D2
mm
8 412E (DK-S) 100 32 10
12 416E (DK30) 76 36 14
12 416E (DK30) 140 36 14
20 417E (DK20) 76 44 21
20 417E (DK20) 140 44 21
25 418E (DK10) 76 49,4 27
25 418E (DK10) 140 49,4 27

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
