Adapter plate DIN 55029, type 8242-400-8

€669.75 *
€797.00 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 358242280000
  • 84662091
  • 42 kg
  • 0
Adapter plate  Bison - DIN 55029 (Camlock) - semi machined, rough on the chuck side -... more
Product information "Adapter plate DIN 55029, type 8242-400-8"

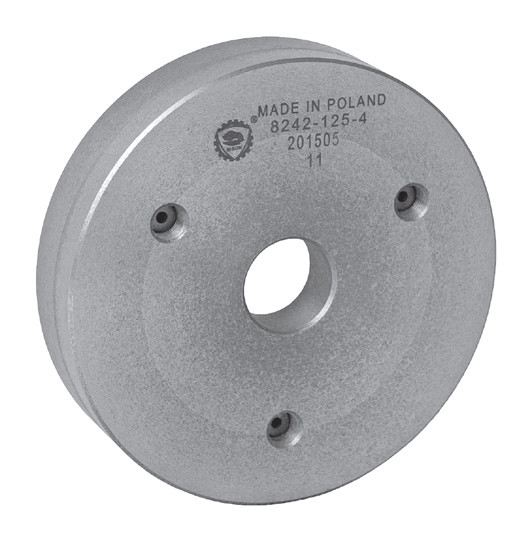

Adapter plate Bison

- DIN 55029 (Camlock)
- semi machined, rough on the chuck side
- type 8242 Ø 400 mm, taper 8

Related links to "Adapter plate DIN 55029, type 8242-400-8"

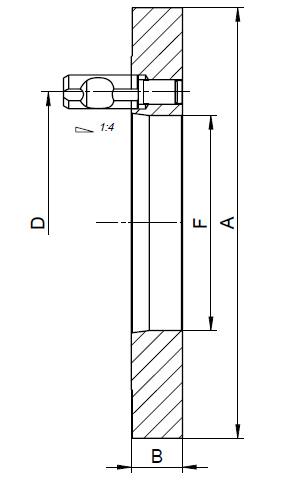

W KK 1:4 / ST 1:4 A B F D kg 100 3 102 28 51,4 70,6 1,8... more
W KK 1:4 /
ST 1:4
A B F D kg
100 3 102 28 51,4 70,6 1,8
125 3 127 50 26,0 70,6 2,4
125 4 127 30 26,0 82,6 2,4
160 4 162 55 26,0 82,6 3,2
160 5 162 35 26,0 104,8 2,8
160 6 162 49 26,0 133,4 4,6
200 4 203 44 60,9 82,6 12,0
200 5 203 50 55,0 104,8 12,0
200 6 203 40 55,0 133,4 12,0
250 5 253 49 79,5 104,8 16,0
250 6 253 49 80,0 133,4 16,0
250 8 253 49 80,0 171,4 16,0
315 6 318 70 103,0 133,4 17,2
315 8 318 55 103,0 171,4 27,0
315 11 318 55 103,0 235,0 24,0
400 8 405 70 136,1 171,4 42,0
400 11 405 50 136,1 235,0 38,5
500 8 505 46 136,1 171,4 72,0
500 11 505 72 192,8 235,0 72,0
630 11 635 72 192,8 235,0 105,0
630 15 635 60 192,8 330,2 105,0

W = Futterdurchmesser / Chuck diameter

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
