Hydraulic high speed cylinder, type 10M1878

Preview: Hydraulic high speed cylinder, type 10M1878 Preview: Drawing Hydraulic high speed cylinder, type 10M1878

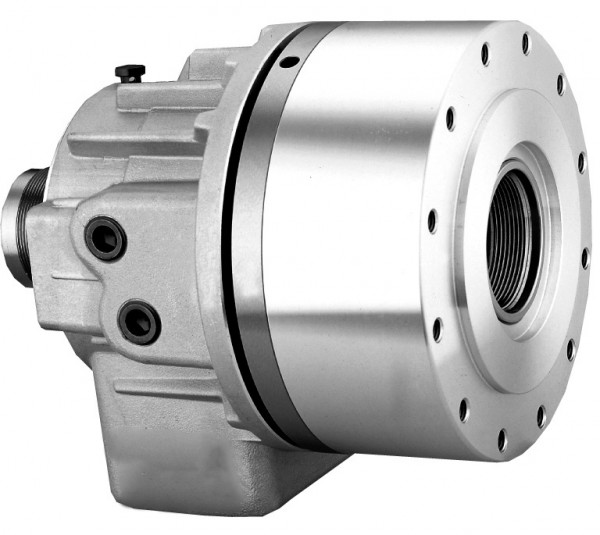

Hydraulic high speed cylinder, type 10M1878

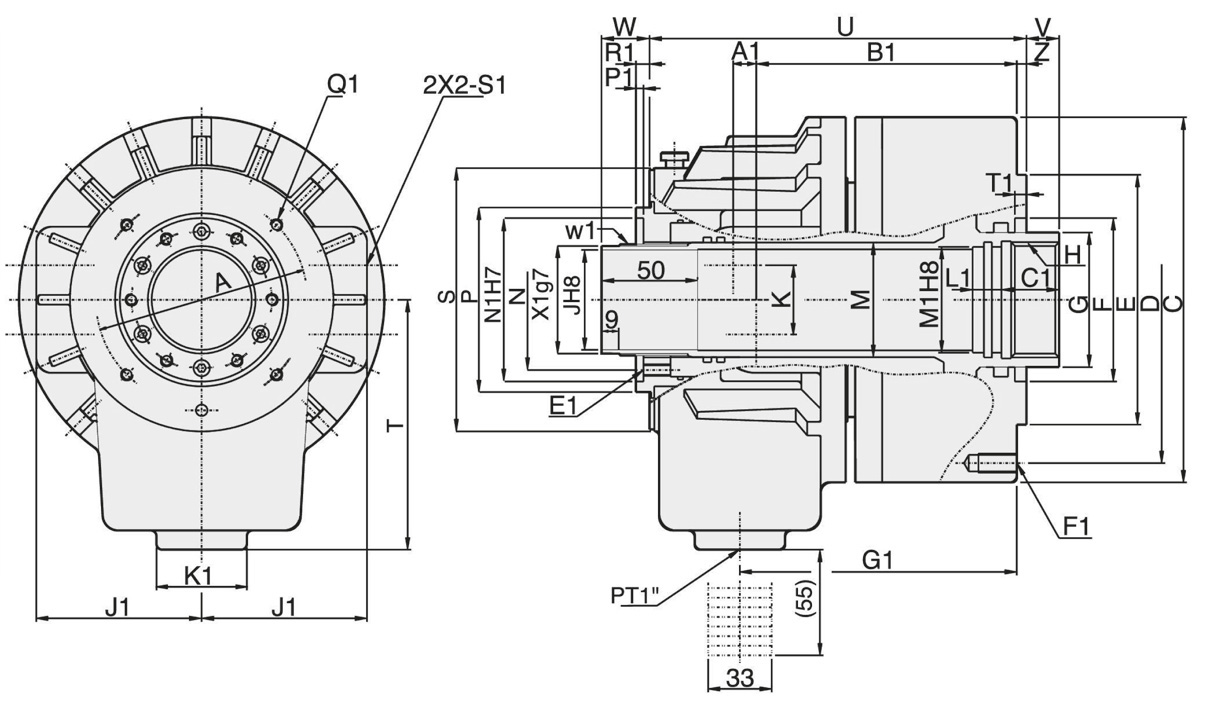

Drawing Hydraulic high speed cylinder, type 10M1878

€1,916.76 *
€2,280.94 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: T9-M1878
  • Customs tariff number: 8466 2091
  • European article number: 4049794025383
  • Weight: 26 kg
  • In stock: 1
Description Technical data Product Safety Information Evaluations 0
Description
Hydraulic high speed cylinder with trough-hole type 10M1878 - for power chucks - small... more
Close menu
Product information "Hydraulic high speed cylinder, type 10M1878"

Hydraulic high speed cylinder with trough-hole type 10M1878

- for power chucks
- small sized and light-weight design
- large bore
- suitable for high speeds

Related links to "Hydraulic high speed cylinder, type 10M1878"
Technical data
Typ / Type Kolbendurchmesser / Piston dia mm Kolbenfläche Druckseite / Piston area... more
Zurück
Typ /
Type		 Kolbendurchmesser /
Piston dia
mm		 Kolbenfläche Druckseite /
Piston area Pressure side cm²		 Kolbenfläche Zugseite /
Piston area Pull side
cm²		 Kolbenhub /
Piston stroke
mm		 Max. Zugrohrkraft (öffnen) /
Max. draw bar pull-push side kgf
10M1878 180 198 183 25 74 (7546)

  Max. Zugrohrkraft (schließen) /
Max. draw bar pull-pull side
kgf		 Max. Betriebsdruck /
Max.operating pressure
kgf cm²		 Max. Drehzahl /
Max. Speed		 Trägheitsmoment /
Moment of inertia
kg / m²		 Gesamtundichtheit /
Total leakage
L / min
  69 (7036) 40 4700 0,38 4,2



Typ /
Type		 C1
mm		 E1
mm		 F1
mm		 G1
mm		 H1
mm		 J1
mm		 K1
mm		 L1
mm		 M1
mm		 N1
mm
10M1878 35 M6x9 M10x20 166,5 155 101 47 15 80 108

O1
mm		 P1
mm		 Q1
mm		 R1
mm		 S1
mm		 T1
mm		 U1
mm		 W1
mm		 X1
mm		 B
mm		 C
mm
16 4 M6x12 7 PT1/2" 6 220 M84x2 81 126 215


Typ /
Type		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 J
mm		 K
mm		 L
mm		 N
mm		 P
mm
10M1878 190 160 120 95 M87x2 78 36 84 98 121

  Q
mm		 S
mm		 T
mm		 U max.
mm		 V min.
mm		 V max.
mm		 W min.
mm		 W
mm		 A1
mm		 B1
mm
  131 166 160 230 20 -5 50 25 17,5 153,5


Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
